API Plan 66A

API Plan 66A

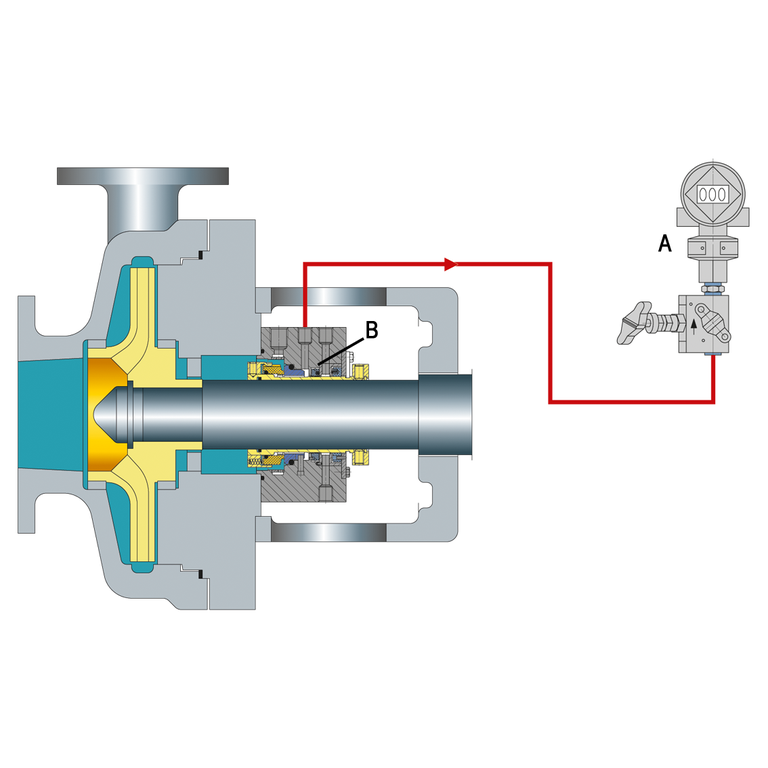

Throttle bushings in the seal gland minimize the seal leakage leaving the seal gland and allow for detection of a seal failure by an alarm of the monitoring pressure transmitter.

A  Pressure transmitter
B  Segmented bushing

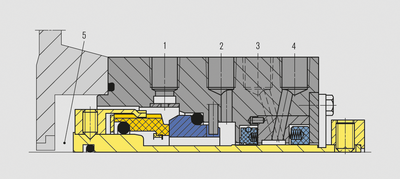

Seal chamber details

1  Flush (F)
2  Pressure transmitter sensing port (PIT)
3  Quench (Q)
4  Drain (D)
5  Seal chamber

Example seal: EagleBurgmann H75VA4-S single pusher mechanical seal.

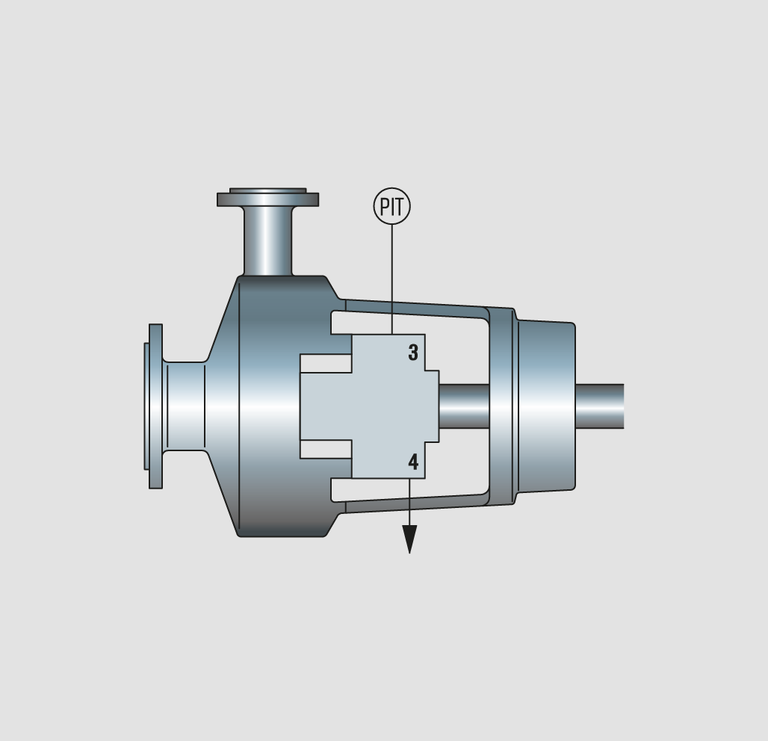

P&ID according to API


3  Quench (Q)
4  Drain (D)

PIT  Pressure transmitter with local indicator


  • Utilizes two bushings – the inner segmented floating bushing and the outer solid carbon floating bushing.
  • Normal leakage continues to flow freely to the drain port.
  • Excessive leakage is restricted by the inner bushing causing a pressure build-up which subsequently triggers a pressure alarm by the pressure transmitter.


  • Commonly used on horizontal pipeline pumps.


Remarks, checkpoints

  • It must be ensured that the leakage from the drain port is collected and piped to a leakage recovery system.
  • Drain connection on the gland must be at the bottom-most position (6 o’clock).



Pump media characteristics

  • Low to medium temperature liquids

Location, function

  • Atmospheric side
  • Leakage limiting detection and alarm
