TSB6
Barrier/buffer fluid system
Installation, details, options

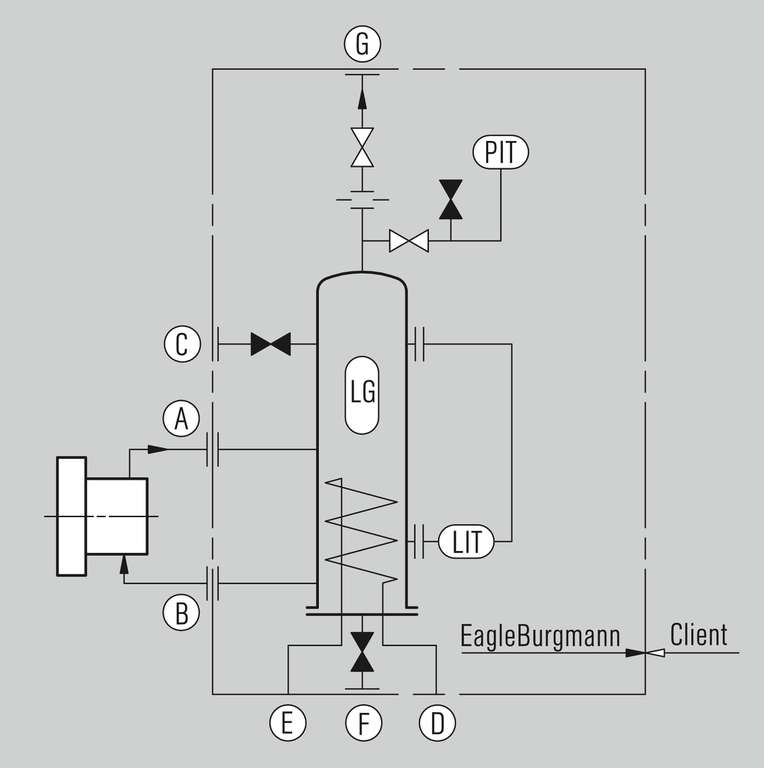

P&ID for TSB6000A4, Plan 52
A From mechanical seal
B To mechanical seal
C Filling connection
D Cooling water IN
E Cooling water OUT
F Drain
G Connection to flare
A From mechanical seal
B To mechanical seal
C Filling connection
D Cooling water IN
E Cooling water OUT
F Drain
G Connection to flare
P&ID for TSA6000A4, Plan 53A
A From mechanical seal
B To mechanical seal
C Filling connection
D Cooling water IN
E Cooling water OUT
F Drain
G N2 IN
A From mechanical seal
B To mechanical seal
C Filling connection
D Cooling water IN
E Cooling water OUT
F Drain
G N2 IN
