Leakage collection reservoir

LSC6 <br/>Leakage collection reservoir For a larger view, please mouseover the image.
For a larger view, please mouseover the image.

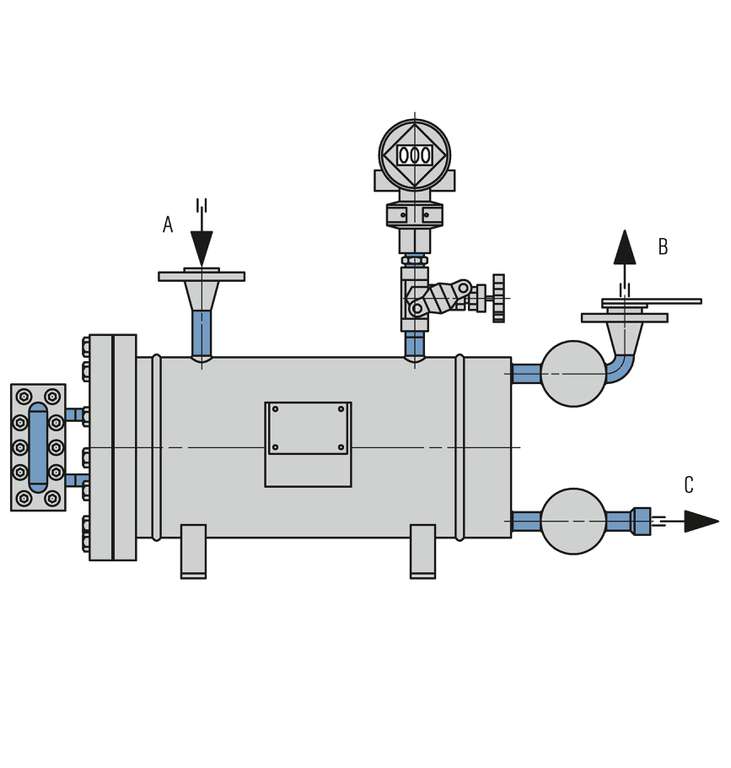

A From mechanical seal
B To vapor collection system
C Drain

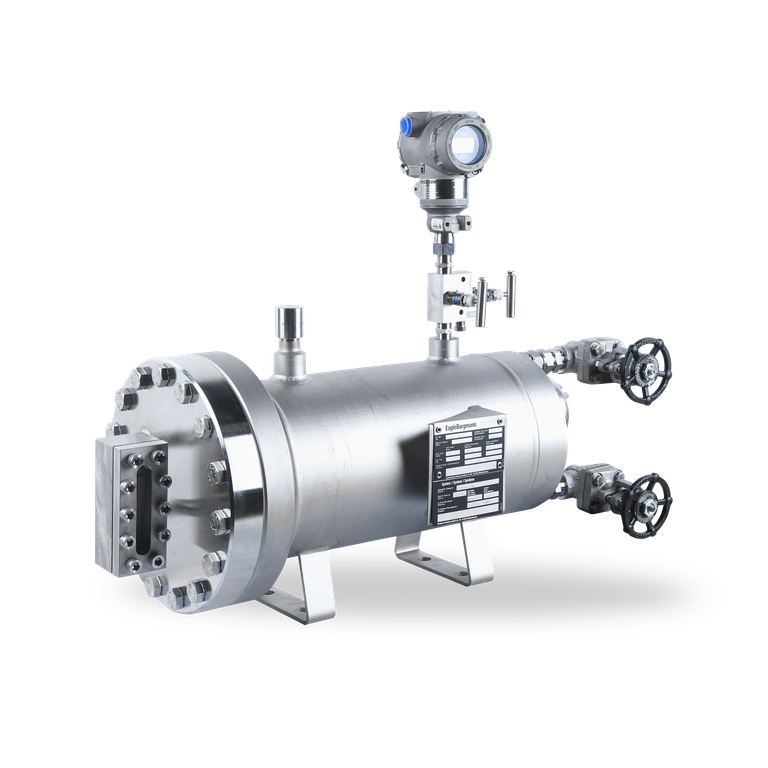

The EagleBurgmann leakage control systems of the LSC6000A4 range are utilized to collect condensing or mixed phase leakage - vapor passing through. A level indicator is installed to determine when the tank needs to be drained. A pressure gauge tracks and indicates seal leakage.
  • Leakage collection tank with sight-glass
  • Modular system: combination with a wide range of monitoring instruments possible
  • API 682 / ISO 21049
  • API 682 4th ed. Cat. 2/3 - 2CW-CS
  • Refining technology
  • Oil and gas industry
  • Petrochemical industry
  • Chemical industry
  • Power plant technology
The LSC6000-A4 leakage control system is used to discharge leakage from liquid-lubricated single seals with downstream safety gas seals where the leakage is liquid under atmospheric conditions.
Design and production in accordance with EU Pressure Equipment Directive PED 2014/68/EU available.
Design, calculation and production acc. to ASME VIII, Div. 1 available.

3rd party inspection, ASME stamp on request.
