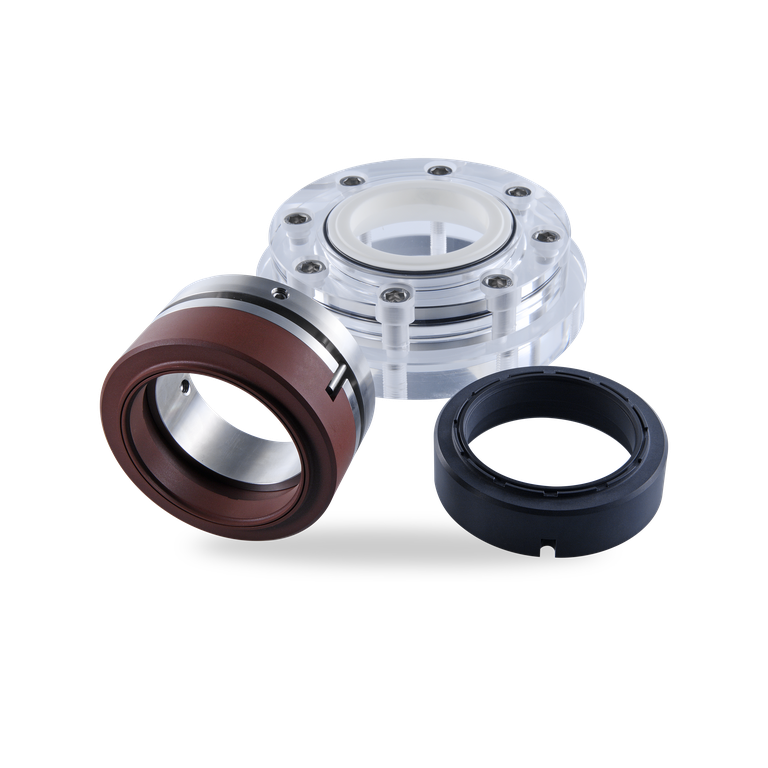

AD510 / AD520

AD510 / AD520 For a larger view, please mouseover the image.
For a larger view, please mouseover the image.

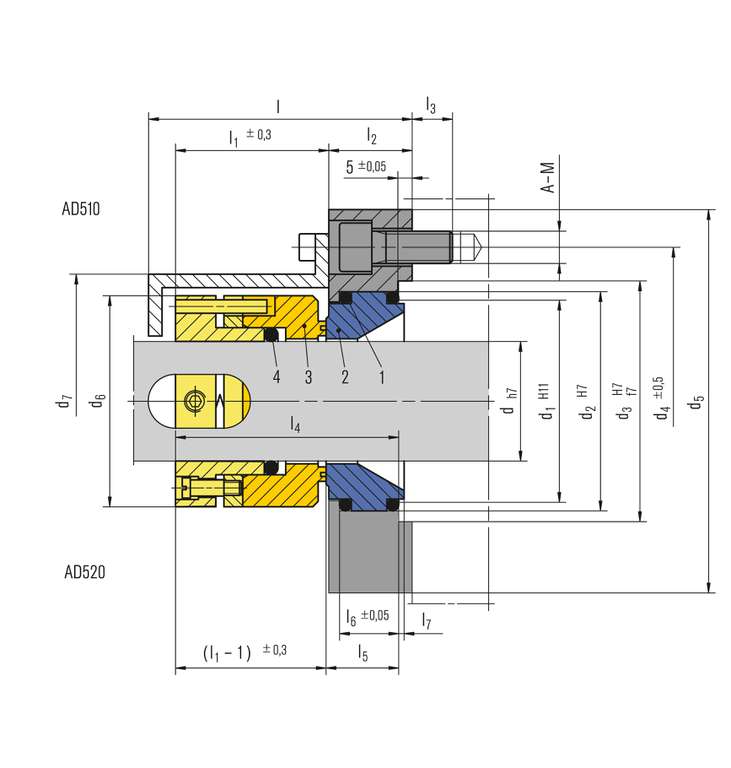

Item Description
1 O-Ring
2 Seat
3 Seal face
4 O-Ring
  • Dry running
  • Single seal
  • Independent of direction of rotation
AD510 includes housing
Pressure:
p = vacuum (7 mbara) … 5 bar (73 PSI)
Temperature:
t = -30 °C ... +175 °C (-22 °F … +347 °F)
Sliding velocity: vg = max. 1.0 m/s (3 ft/s)
Allowable gas consumption: 2 Nl/h
Seal face: PTFE, Carbon fiber and glass fiber reinforced
Seat: Silicon carbide (Q1), Aluminium oxide (V)
  • Chemical industry
  • Pharmaceutical industry
  • Food and beverage industry
  • Reactors
  • Polymerization agitators
  • Mixers
Options:
Cooling jacket on the vessel side flange and carbon bush and
version with gas flushing line and lip seal. Please inquire.
