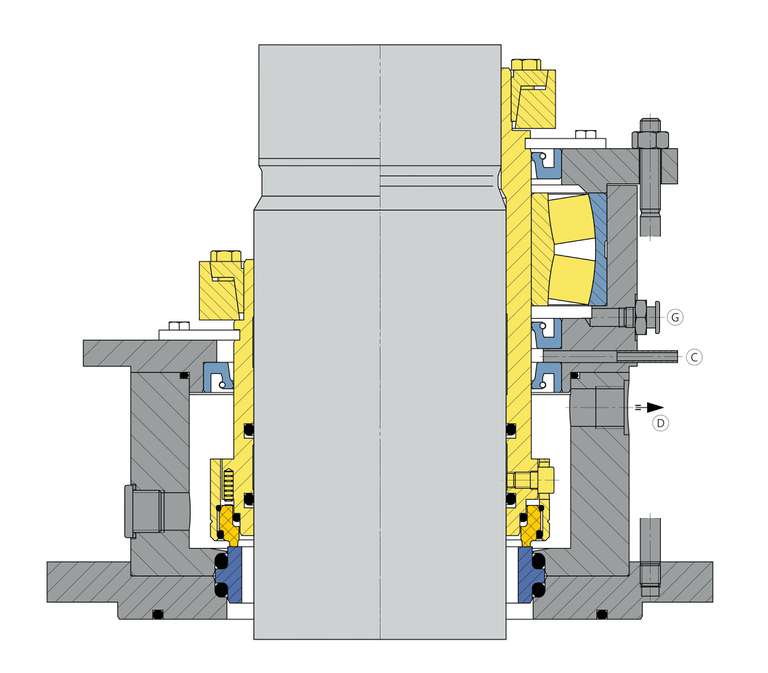

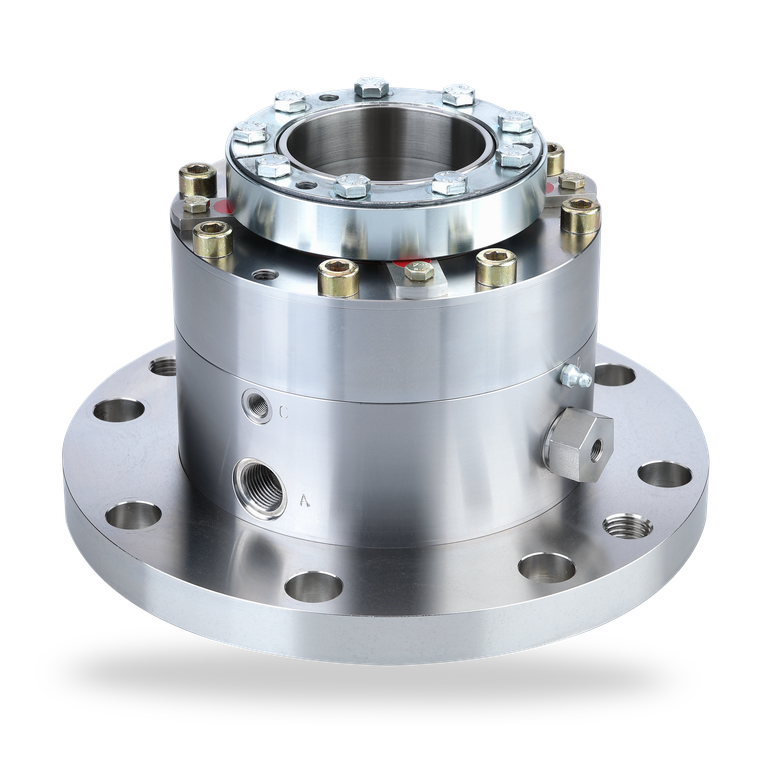

SeccoMix 481

SeccoMix 481 For a larger view, please mouseover the image.
For a larger view, please mouseover the image.

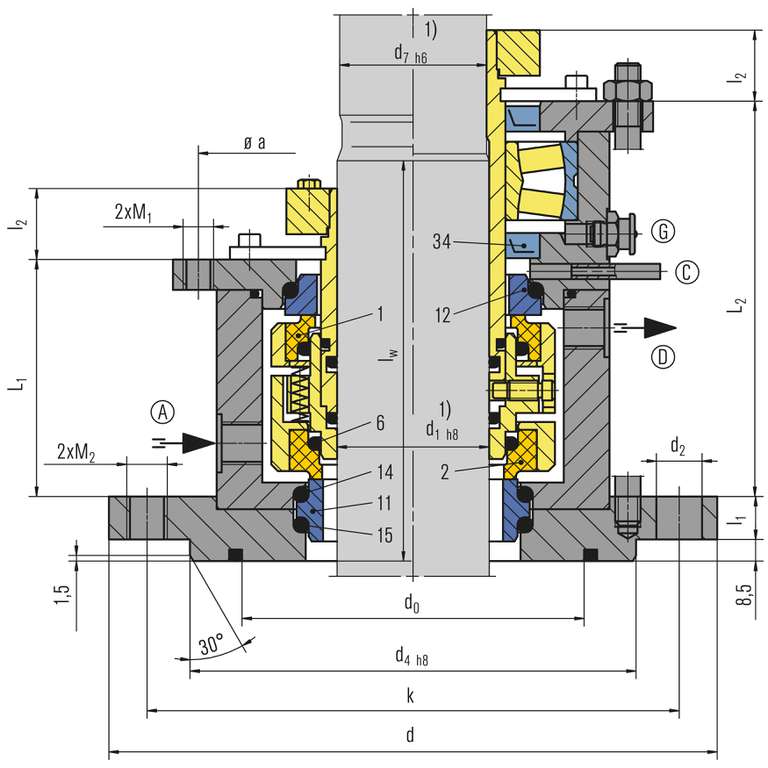

ItemDescription
1Seal face, atmosphere side
2Seal face, product side
6, 14, 15O-Ring
11Seat, product side
12Seat, atmosphere side
34Lip seal
  • For top entry drives
  • For steel vessels acc. to DIN resp. Non-DIN
  • Nitrogen pressurized dual seal, single seal optional
  • Balanced
  • Independent of direction of rotation
  • Multiple springs rotating
  • Dry running
  • Cartridge unit
  • Ready-to-fit and factory-tested unit
  • With or without bearing available
  • Suitable for pressure reversal e.g. in case of barrier pressure failure
  • No contamination of the product by barrier fluid
  • Friction-locked connection to the shaft
  • Connections to DIN 28138 standards or as required (SeccoMix 451)
  • ATEX certification available on request
Shaft diameter:
d1 = 40 ... 220 mm (1.57" ... 8.66")
Pressure: p1 = vacuum ... 6 bar (87 PSI)
Temperature: t1 = -20 °C ... +200 (250*) °C
(-4 °F ... +392 (482*) °F)
Sliding velocity: vg = 0 ... 2 m/s (0 ... 6 ft/s)

For applications beyond this range, please inquire.
* with cooling flange
Seal face: Carbon graphite, FDA conform
Seat: Silicon carbide, FDA conform
Secondary seals and metal parts according to application and customer's specifications.
  • FDA
  • ATEX
  • DIN 28138 (mechanical seals for agitator shafts)
  • DIN 28136 T2 (steel vessels)
  • DIN 28141 (flange connection for steel vessels)
  • DIN 28154 (shaft end for steel vessels)
  • Refining technology
  • Petrochemical industry
  • Chemical industry
  • Pharmaceutical industry
  • Food and beverage industry
  • Agitators
  • Mixers
  • Reactors
Options:
  • Cooling or heating flange
  • Wear trap with flush
  • Wear trap with flush and cooling / heating flange
  • Polymerization barrier
Gas supply
EagleBurgmann GSS4015/A400-D0
for dual seals SeccoMix 481...D..
