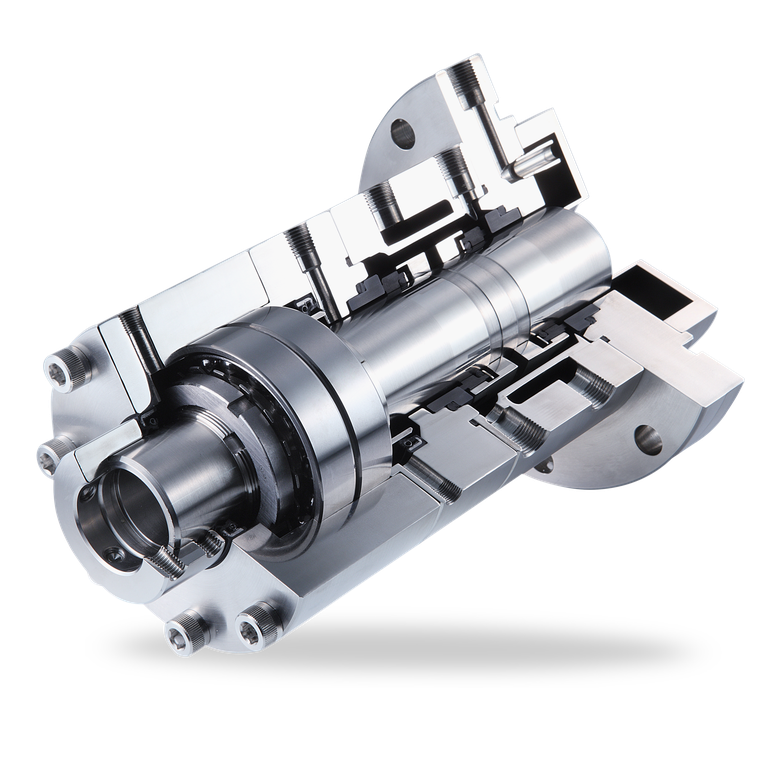

ERB

ERB For a larger view, please mouseover the image.

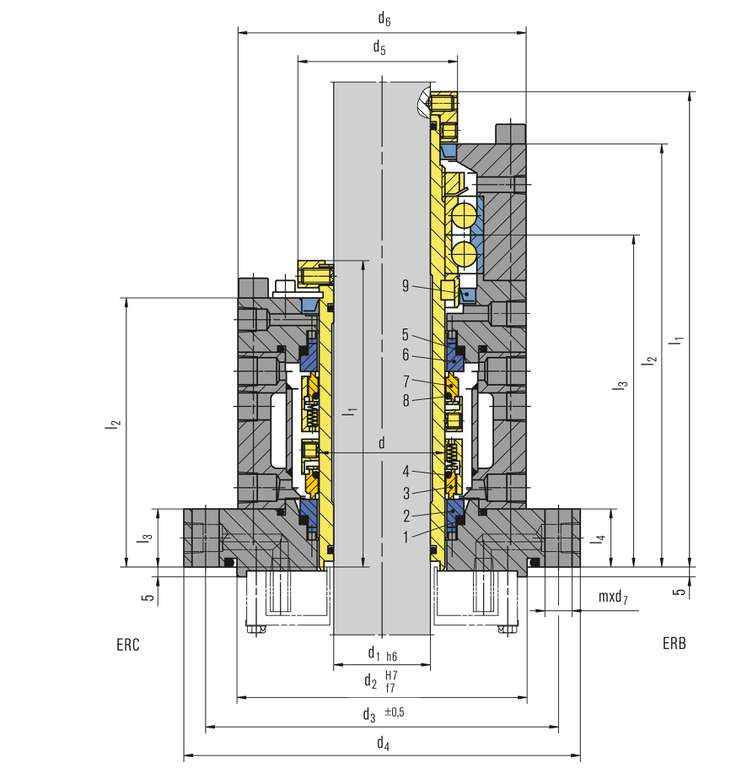

ERB/ERC 110-200 For a larger view, please mouseover the image.
ERB/ERC 110-200
Item Description
1, 4, 5, 8 O-Ring
2, 6 Seat
3, 7 Seal face
9 Shaft seal

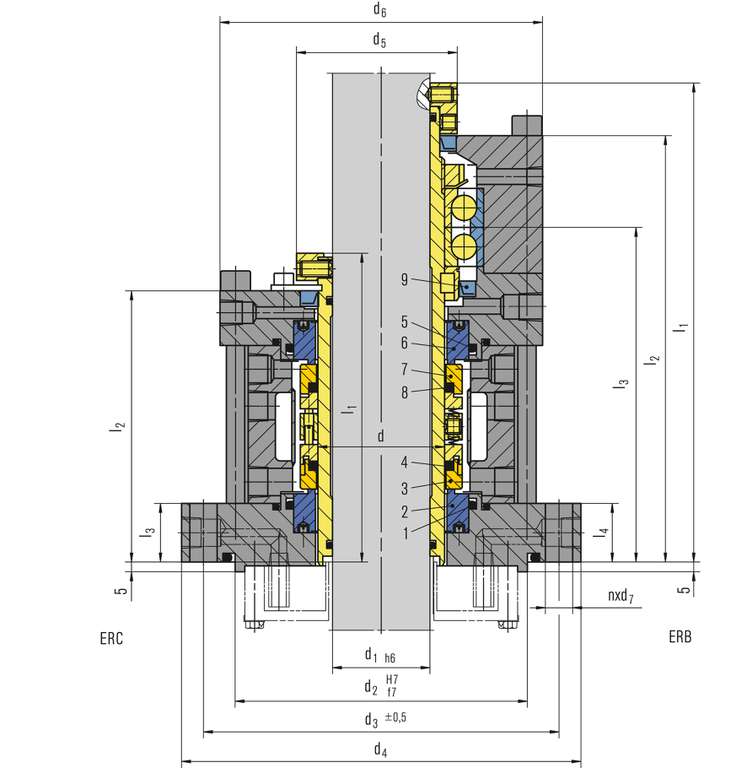

ERB/ERC 50-100 For a larger view, please mouseover the image.
ERB/ERC 50-100
  • Cartridge unit
  • Double seal with integrated bearing
  • Unbalanced
  • Independent of direction of rotation
  • Ready-to-fit and factory-tested units
  • Available with or without bearing
  • Suitable for standardizations
  • Balanced seal can be applied at high pressure
Pressure: p = vacuum ... 10 bar (145 PSI)
Temperature:
t = -30 °C ... +200 °C (-22 °F … +392 °F)
Rotational speed: = max. 200 min-1
Axial movement: max. 0.3 mm
Diameter 50 ... 100 mm:
Seal faces: Carbon graphite resin impregnated(B)
Seat: Silicon carbide (Q1), Tungsten carbide (U1), chromium oxide coated

Diameter 110 ... 200 mm:
Seal faces: Silicon carbide (Q1), Tungsten carbide(U1), chromium oxide coated
Seats: Carbon graphite resin impregnated (B), Silicon carbide (Q1), Tungsten carbide (U1)
  • Chemical industry
  • Food and beverage industry
  • Reactors
  • Polymerization agitators
  • Mixers
Options:
Cooling jacket on the vessel side flange. Please inquire.
