CSE

CSE For a larger view, please mouseover the image.
For a larger view, please mouseover the image.

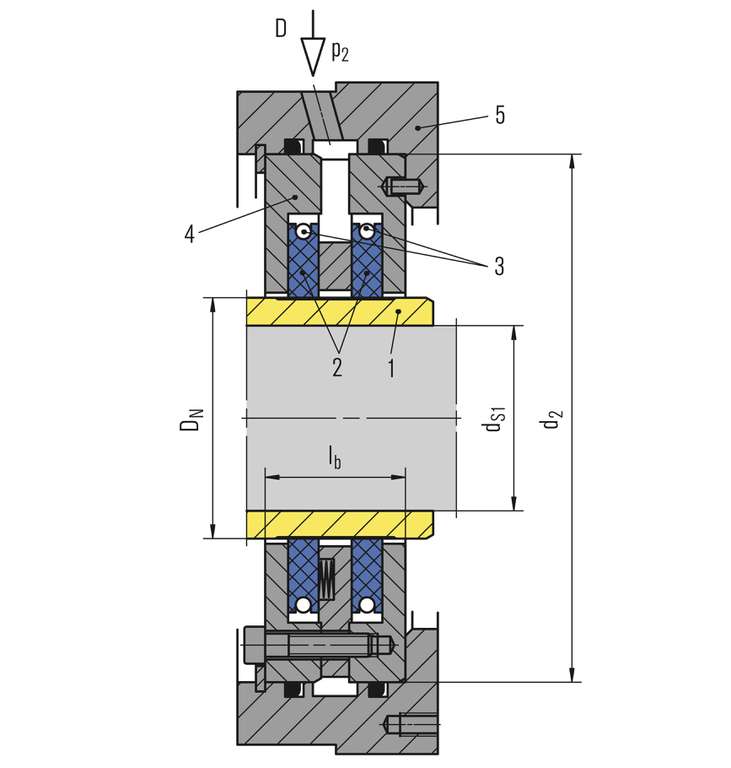

Item Description
1 Shaft sleeve
2 Segmented carbon ring
3 Garter spring
4 Housing of the standardized sub-cartridge
5 Housing (size matched to installation space)
D Separation gas
  • Non-contacting bushing seal
  • Gas-lubricated
  • Bi-directional
  • Ready-to-fit cartridge unit
  • Equipped with Espey carbon rings type WKA400
  • Low leakage
  • Slow roll capability
  • Insensitive to dry nitrogen
Shaft diameter:
38 … 390 mm (1,50" … 15,35")
Design pressure:
p = … 10 bar (145 PSI)
Operating pressure:
p = 0.07 bar (1.02 PSI)
Temperature:
t = -20 °C … +200 °C (-4 °F … +392 °F)
Sliding velocity:
vg = 0 ... 200 m/s (0 … 656 ft/s)
Dew point: No limitation

Project specific special designs possible.
Seal face: Carbon graphite impregnated
Secondary seals: FKM
Shaft sleeve: Stainless steel, TC-coated
Metal parts: 1.4006 or other stainless steels
  • Oil and gas industry
  • Refining technology
  • Petrochemical industry
  • Nitrogen
  • Air
  • Centrifugal compressors
  • Turbo expanders
  • Screw compressors
  • Blowers

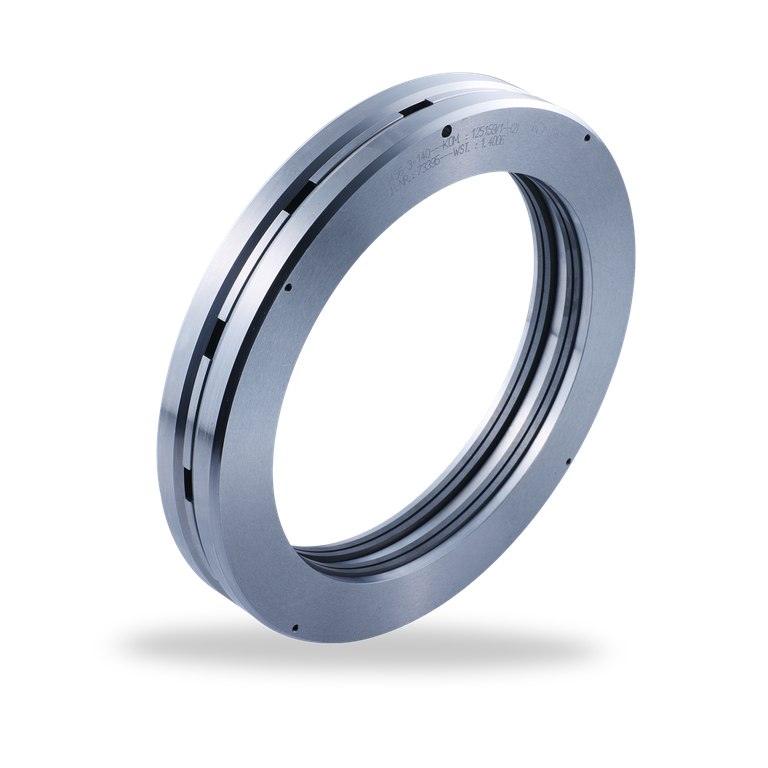

The service-proven non-contacting bushing seal with low gas consumption. Non contact type carbon rings are segmented rings held together by a garter spring at the outer diameter. A defined minimum radial gap provides a contact- free operation. Robust design and reliable operation provide secure oil sealing even at extreme conditions.

Dimensions on request.
