MBS100

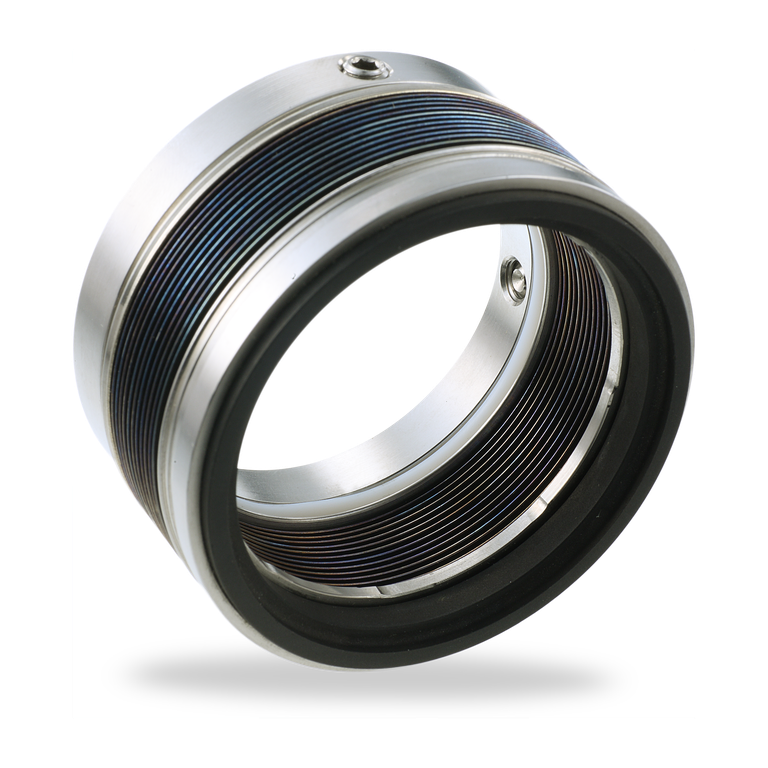

MBS100 For a larger view, please mouseover the image.
For a larger view, please mouseover the image.

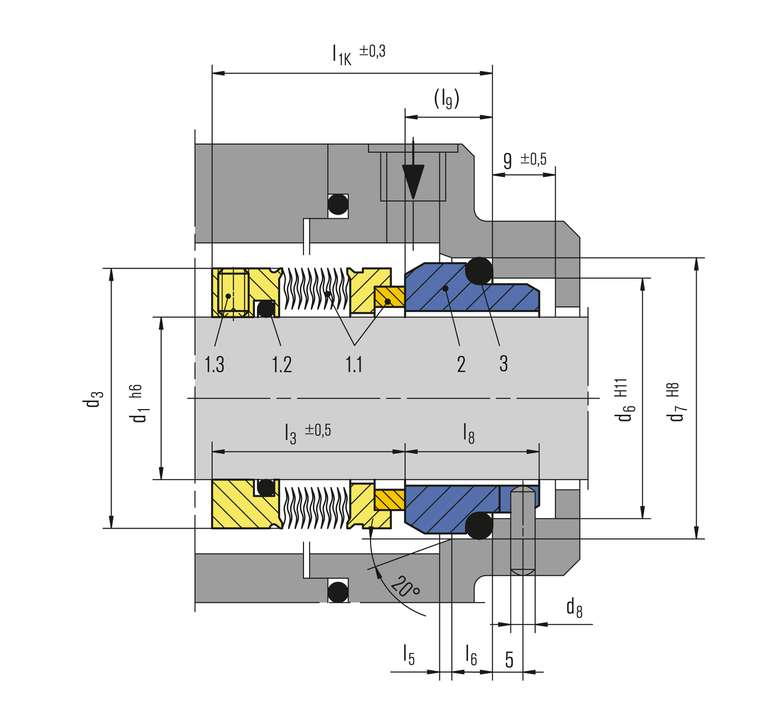

Item Description
1.1 Seal face with bellows unit
1.2 O-Ring
1.3 Set screw
2 Seat (G9)
3 O-Ring
  • For unstepped shafts
  • Rotating bellows
  • Single Seal
  • Balanced
  • Independent of direction of rotation
  • For extreme temperature ranges
  • No dynamically loaded O-Ring
  • Self cleaning effect
Shaft diameter: d1 = 20 … 100 mm (0.75" … 4")
Pressure: p1 = … 25 (16*) bar 363 (232*) PSI
Temperature:
t = -40 °C … +220 (160*) °C (-40 °F … 428 (320*)) °F
Sliding velocity: vg = 20 m/s (66 ft/s)

* Operating limits for material combination
Q1/Q1
Seal face: Silicon carbide (Q12), Carbon graphite (A)
Seat: Silicon carbide (Q1)
Bellows: Inconel® 625 (T3)
Secondary seals: FKM (V)
Metal parts: Duplex (G1)
  • Process industry
  • Refining technology
  • Power plant technology
  • Chemical industry
  • Hot media
  • Cold media
  • Highly viscous media
  • Pumps
  • Special rotating equipment
