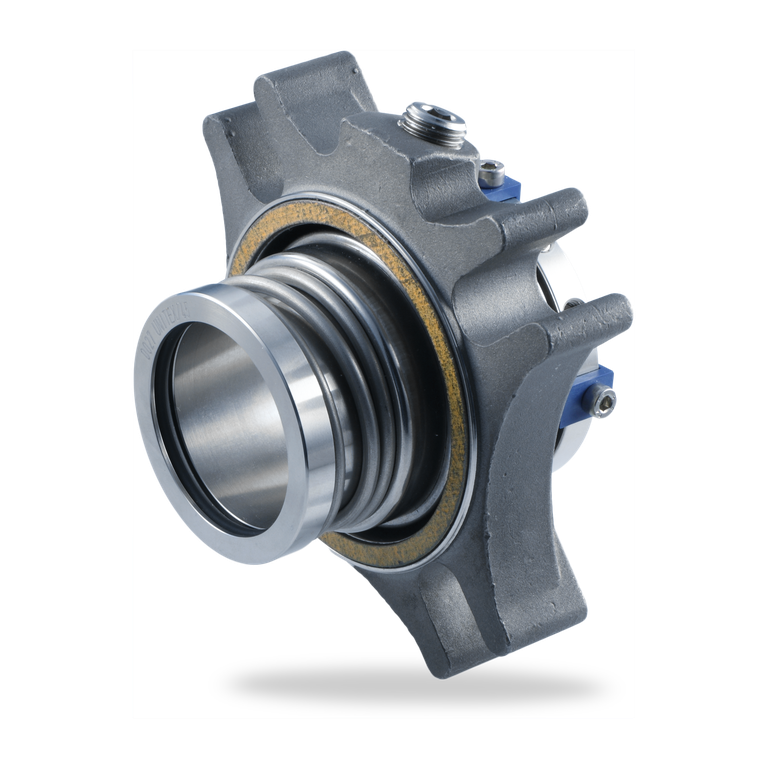

Unitex

Unitex For a larger view, please mouseover the image.
For a larger view, please mouseover the image.

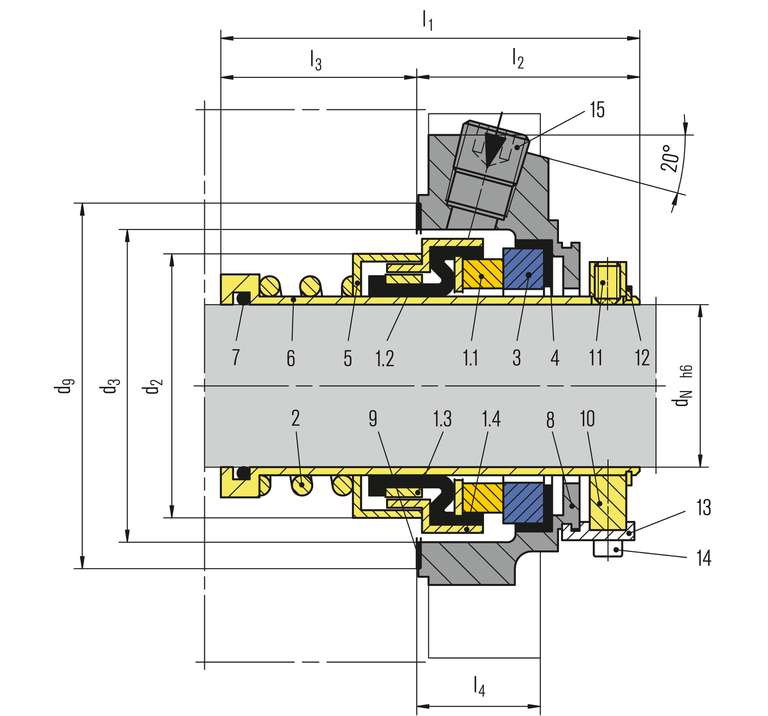

Item Description
1 Bellows unit
1.1 Seal face
1.2 Bellows
1.3 Drive collar
1.4 L-ring (spring collar)
2 Spring
3 Seat (G60)
4 O-Ring or corner sleeve
5 Spacer ring
6 Shaft sleeve
7 O-ring
8 Cover
9 Gasket
10 Drive collar
11 Set screw
12 Snap ring
13 Assembly fixture
14 Socket head screw
15 Screw plug
  • Single cartridge seal
  • Elastomer bellows
  • Unbalanced
  • Independent of direction of rotation
  • Rotating spring
  • Bellows and spring free from torsion
  • Metric and inch sizes available
  • Straightforward and easy installation
  • Fits into any installation space due to smallest outer diameter
  • Important material certifications available
  • Universal application opportunities (standardization)
  • No modifications of the pump's installation chamber necessary
  • Economical cartridge solution
  • Comes with flush connection acc. to API 682, Plan 11 for seal chamber cleaning and cooling
Shaft diameter:
dN = 25 … 75 mm (1" … 2.625")
Pressure: p1 = 12 bar (174 PSI)
Temperature:
t = -20 °C … 140 °C (-4 °F … 284 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Axial movement: ±0.5 mm
Seal face: Carbon graphite resin impregnated (B), Silicon carbide (Q1)
Seat: Silicon carbide (Q1)
Secondary seals: FKM (V), EPDM (E)
Metal parts: CrNiMo steel (G), CrNiMo cast steel (G)
  • FDA
  • KTW
  • WRAS
  • W270
  • NSF
  • ACS
  • Chemical industry
  • Pulp and paper industry
  • Water and waste water technology
  • Sewage water
  • Cold and hot water
  • Cooling fluids
  • Beverages
  • Diluted lyes and acids
  • Suspensions with low solids content
  • Circulating pumps
  • Water and waste water pumps
  • Production of pressure oils for bio diesel fuels
