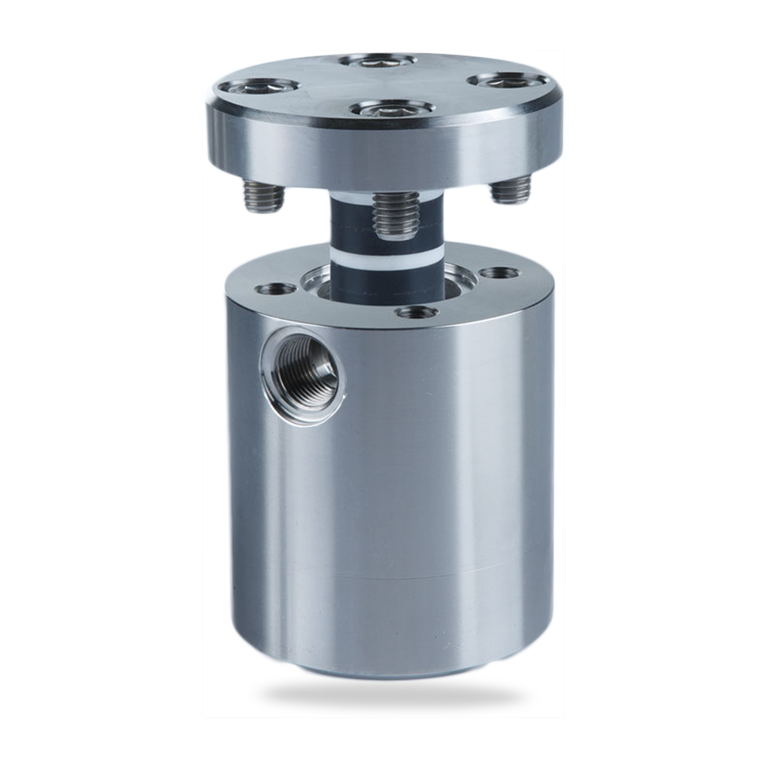

MAA Magnetic separator

MAA Magnetic separator For a larger view, please mouseover the image.
For a larger view, please mouseover the image.

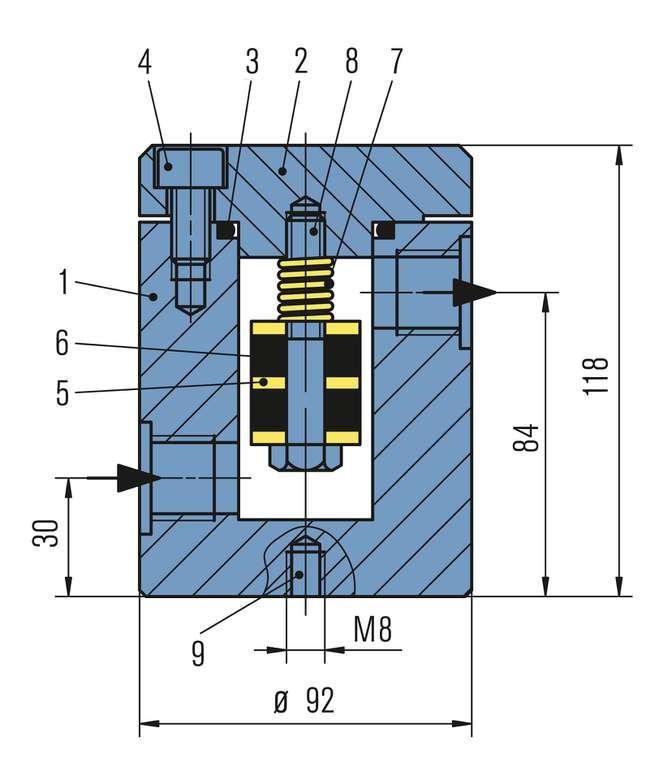

Item Description
1, 2 Casing and cover: 1.4571
3 O-Ring: E
4, 8 Screws: A4 – 70 stainless steel
5 Washers: T2
6 Ring magnets:
corrosion-resistant
7 Spring: 1.4301
9 Fixing hole
Magnetic separators of the MAA range consist of a pressure casing with integrated magnetic rod. Magnetic separators are used in seal supply systems and any other such systems in which a liquid has to be cleaned of magnetic impurities.
  • For operating pressures of up to 150 bar
  • Housing can be dismantled: simple maintenance and cleaning
  • Reliable and rugged technology
  • Petrochemical industry
  • Chemical industry
  • Power plant technology
  • Refining technology
  • Oil and gas industry
The magnetic rod is positioned in the casing in such a way that it catches magnetic particles flowing past in the medium on all sides.
Cleaning:
The magnetic rod can be removed for cleaning with the casing fitted by opening the cover (with the line depressurized!). Maintenance intervals depend on the degree of soiling. We recommend checking and if necessary cleaning the magnetic rod several hours after using for the first time and each time after flushing the pipes because experience indicates that much of the dirt is flushed out of the pipes at this time.
