ZY Cyclone separators

ZY Cyclone separators For a larger view, please mouseover the image.

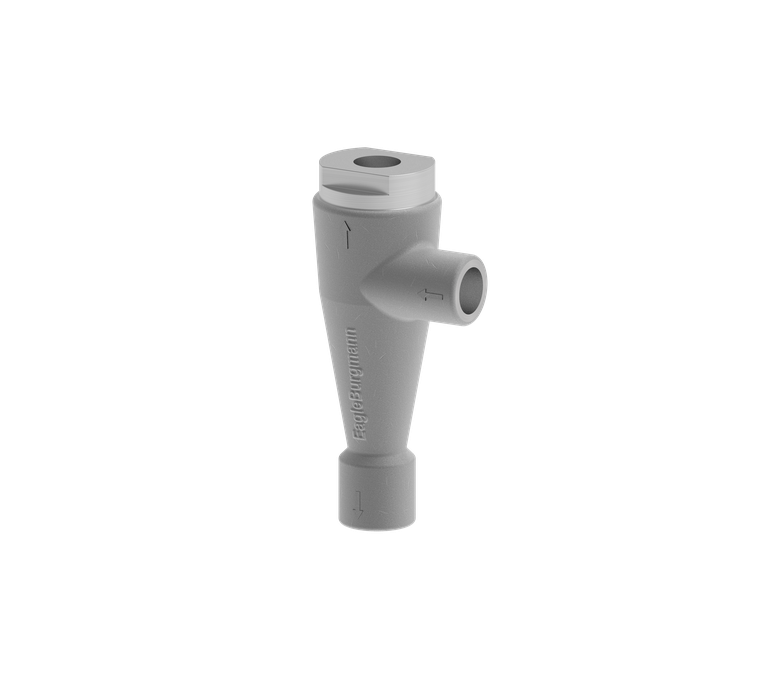

The ZY range (shown: ZY62) is available in three basic versions:
ZY61: cyclone separator with replaceable insert made of elastomer or ceramic
ZY62: cast version of the cyclone separator
ZY203: cyclone separator for high flow rates and high pressures

Circulation in accordance with API 682 / ISO 21049: Plan 31, API Plan 41
  • Contaminations are automatically conveyed to the suction nozzle of the pump: maintenance-free mode of operation for guaranteed reliability
  • High filtration efficiency
  • Wide range of products for the optimum solution for every application
  • ZY203: for operating pressures of up to 200 bar

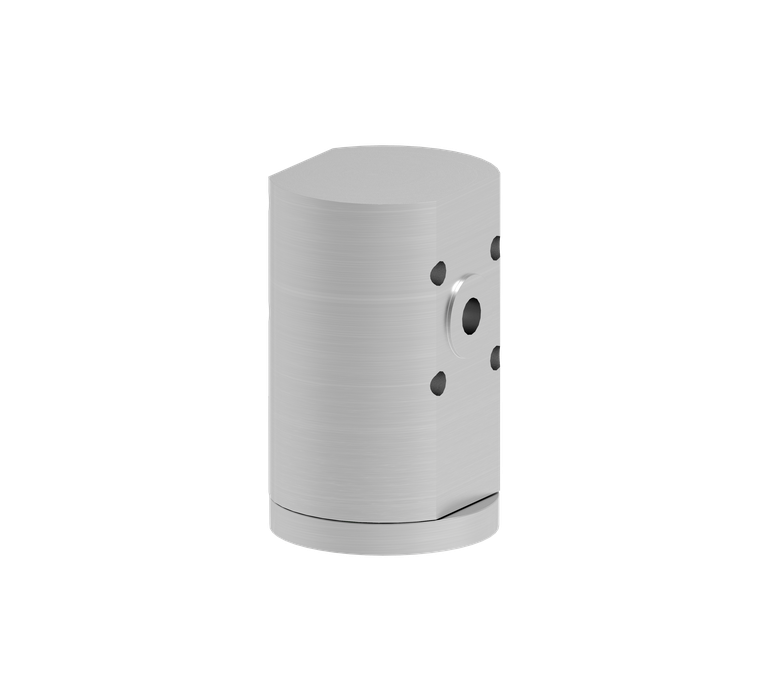

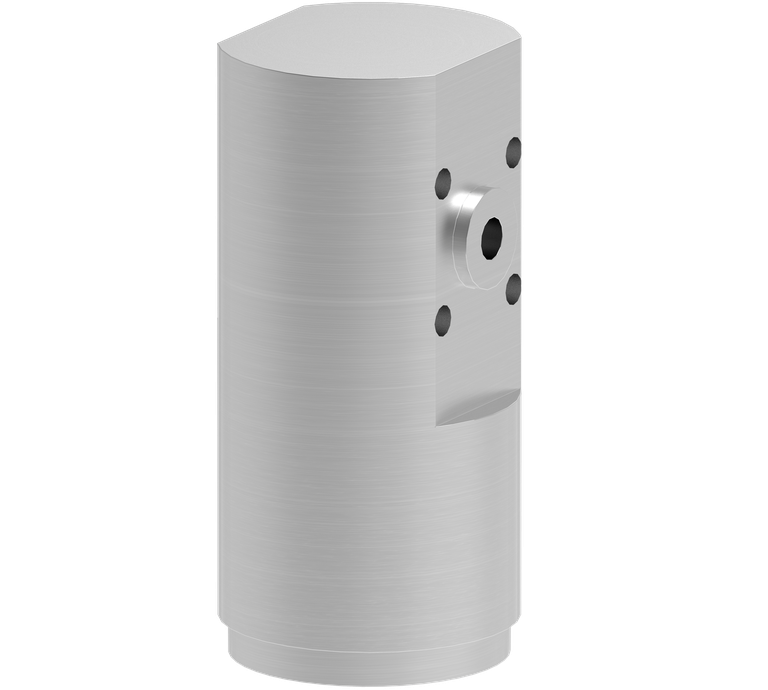

  • ZY61, ZY203 optional in block-type design with integrated flange connections: low space requirements because of compact design
  • Water and waste water technology
  • Petrochemical industry
  • Chemical industry
  • Oil and gas industry
  • Refining technology
Cyclone separators of the ZY range are used to clean mainly aqueous liquids containing dirt and solids (e.g. in circulation systems of sewage, sludge or pipeline pumps). The best possible filtration efficiency is achieved when the specific weight of the solids is much higher than that of the carrier liquid (recommended by API 682 4th edition: at least double), and when the differential pressure is as large as possible within the permissible pressure range (min. 1.7 bar in accordance with API 682). The viscosity of the medium is also a factor that needs to be taken into account.
