MFU Multi Flow Unit

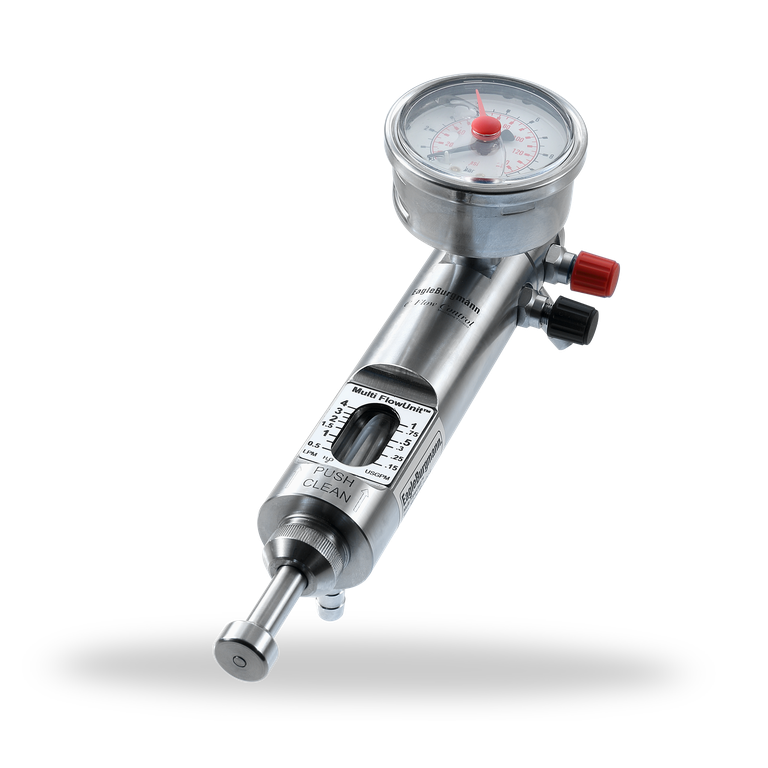

MFU Multi Flow Unit For a larger view, please mouseover the image.
The Multi Flow Unit (MFU) is an economical sealing water management solution for reducing operating costs through minimized rates of fresh water and waste water. The MFU series is available in three basic versions:
MFU-MP: for single seals with flush
MFU-MQ: for seals with quench
MFU-MD: for double seals

These are available for different indicated flow ranges and with numerous system components (e.g. mounting supports, stands, hoses, alarm sensors, etc.) and other material combinations.
Circulation in accordance with API 682 Plan 32, Plan 62.
  • Economical supply system
  • Optimized sealing water management
  • Reduced costs for fresh water and waste water
  • Easy operation and cleaning even during operation
  • Safe operation even in case of pressure changes
  • Quick detection of seal failures
Max. operating pressure: 25 bar (363 PSI)
Max. operating temperature: 85 °C (185 °F)
Indicated flow range (pressure drop):
0.1 ... 2 l/min. (≤0.1 bar (1.5 PSI) at 2 l/min)
0.5 ... 4 l/min. (0.1 bar (1.5 PSI) at 4 l/min.)
1 ... 8 l/min. (≥1 bar (15 PSI) at 8 l/min.)
8 ... 15 l/min. (available on request)
  • Pulp and paper industry
  • Food and beverage industry
  • Water and waste water technology
  • Chemical industry
  • Process industry
The seal water control unit MFU is designed to enable easy adjustment of the rate of sealing water (flush, quench or buffer water) on rotary machines to the optimum and lowest level of water consumption necessary for the seal's safe operation. Key parameters such as pressure and flow can be permanently monitored for early detection of any malfunctions. The buffer medium is supplied by an external system.
