WED5

WED5 For a larger view, please mouseover the image.

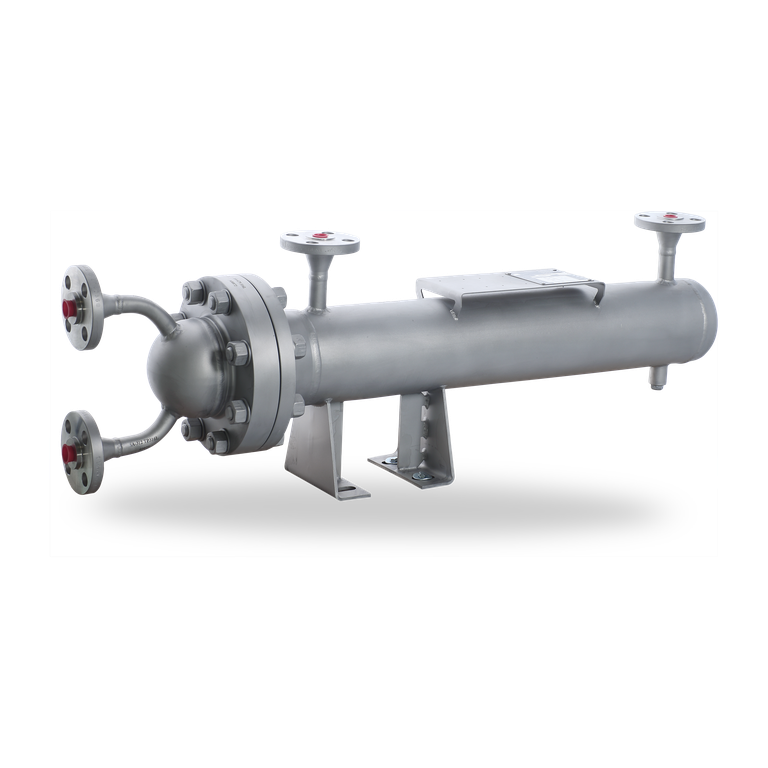

Heat exchangers of the WED5 range (photo: WED5050/A020-D1) are used to cool process/barrier fluids in seal supply circuits. WED5 heat exchangers are available in 3 standard sizes and are API 682 conform. The process/barrier medium is directed through the tube and the cooling medium through the shell. For simple draining of the cooling water side, the heat exchanger can also be supplied with drainage ball valves. In addition, the heat exchangers can also be combined with a temperature instrument in the supply line to mechanical seal (optional in accordance with API 682).
Circulation in accordance with API 682 / ISO 21049: Plan 21, Plan 22, Plan 23, Plan 41
  • Modular Design, length upgradeable
  • High pressure version up to 250 bar (3,625 PSI) on request
  • High temperature version up to 425 °C (797 °F) on request
  • 316/316L stainless steel: high resistance to corrosive fluids
  • Compliant with requirements acc. to TEMA C
  • ASME VIII, Div. 1 (Design, calculation and production)
  • Chemical industry
  • Petrochemical industry
  • Oil and gas industry
  • Refining technology
Cleaning:
Cooling water side: the area around the tubes can be cleaned mechanically after the housing is removed
Process/barrier medium side: flush with a suitable solvent
