Combine-X
expansion joints
Installation, details, options

Combine-X product properties
Type Agressive
media		 Non-aggressive
media		 Max. temperature
P-Flange		 Min. temperature Max. pressure Min. pressure Axial
flexibility		 Lateral
flexibility
A Dry Dry 550 °C
(1,022 °F)		 -35 °C
(-31 °F)		 0.07 bar
(1.02 PSI)		 -0.14 bar
(-2.03 PSI)		 40 % 20 %
B Dry Dry 500 °C
(932 °F)		 -35 °C
(-31 °F)		 0.07 bar
(1.02 PSI)		 -0.14 bar
(-2.03 PSI)		 35 % 13 %
CC* Dry Dry 650 °C
(1,202 °F)		 -35 °C
(-31 °F)		 0.07 bar
(1.02 PSI)		 -0.14 bar
(-2.03 PSI)		 50 % 20 %
E Dry Dry 600 °C
(1,112 °F)		 -35 °C
(-31 °F)		 0.07 bar
(1.02 PSI)		 -0.14 bar
(-2.03 PSI)		 35 % 13 %
G Dry Dry 600 °C
(1,112 °F)		 -35 °C
(-31 °F)		 0.07 bar
(1.02 PSI)		 -0.14 bar
(-2.03 PSI)		 40 % 15 %
R Dry Dry 600 °C
(1,112 °F)		 -35 °C
(-31 °F)		 0.07 bar
(1.02 PSI)		 -0.14 bar
(-2.03 PSI)		 35 % 13 %
V Dry Dry 600 °C
(1,112 °F)		 -35 °C
(-31 °F)		 0.07 bar
(1.02 PSI)		 -0.14 bar
(-2.03 PSI)		 35 % 15 %
W Dry Dry 600 °C
(1,112 °F)		 -35 °C
(-31 °F)		 0.07 bar
(1.02 PSI)		 -0.14 bar
(-2.03 PSI)		 40 % 15 %
E-L Dry Dry 600 °C
(1,112 °F)		 -35 °C
(-31 °F)		 0.07 bar
(1.02 PSI)		 -0.14 bar
(-2.03 PSI)		 35 % 15 %
HF (1+2) Dry Dry 650 °C
(1,202 °F)		 -35 °C
(-31 °F)		 0.07 bar
(1.02 PSI)		 -0.14 bar
(-2.03 PSI)		 35 % 10 %
HF3 Dry Dry 650 °C
(1,202 °F)		 -35 °C
(-31 °F)		 0.07 bar
(1.02 PSI)		 -0.14 bar
(-2.03 PSI)		 35 % 10 %



* Requires internal duct insulation
or refractory lining

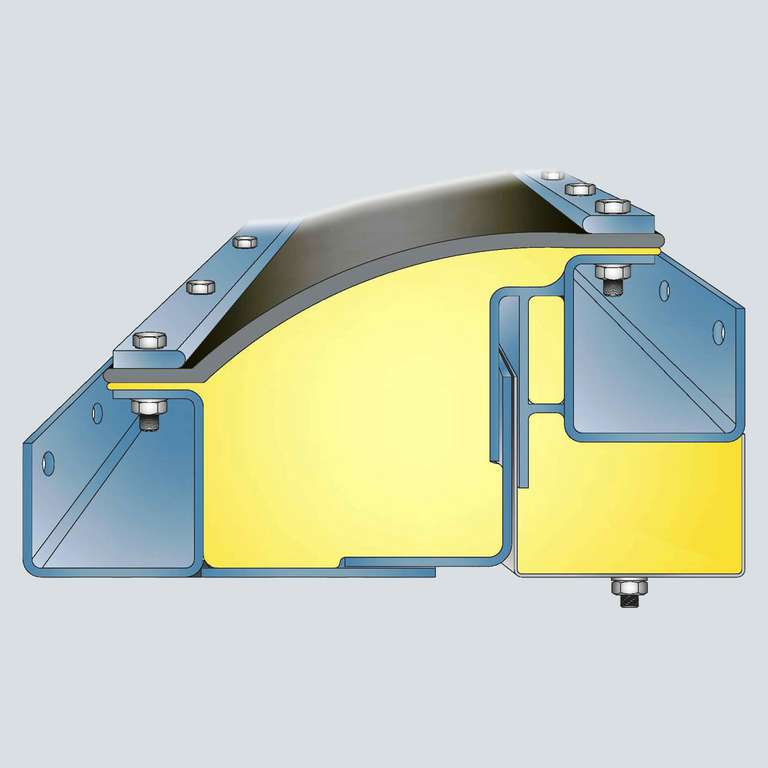

Cold-to-hot floating ring For a larger view, please mouseover the image.

Cold-to-hot floating ring

Temperature:
max. 600 °C (1,110 °F)

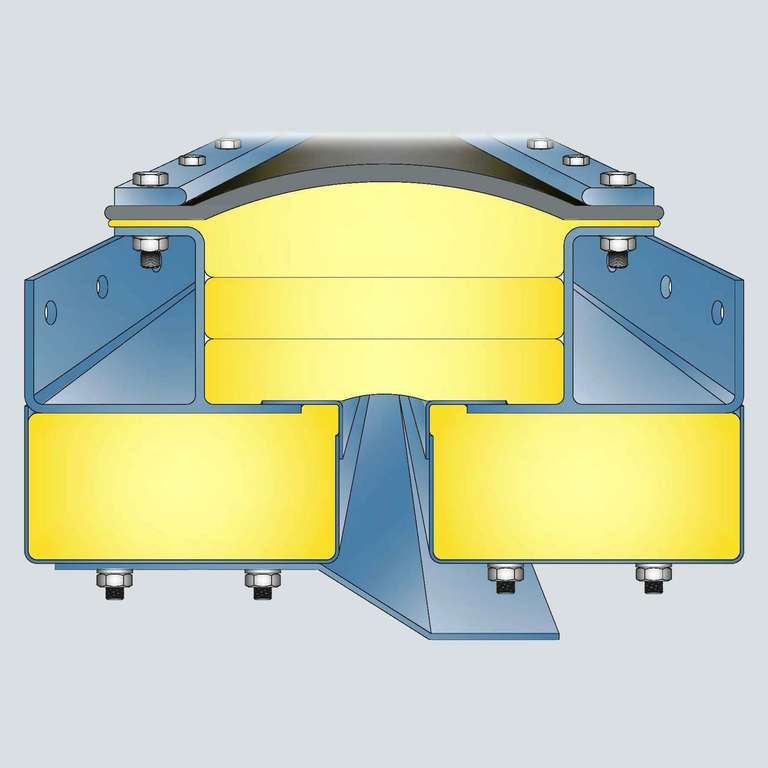

Cold-to-cold For a larger view, please mouseover the image.

Cold-to-cold

Temperature:
max. 650 °C (1,202 °F)

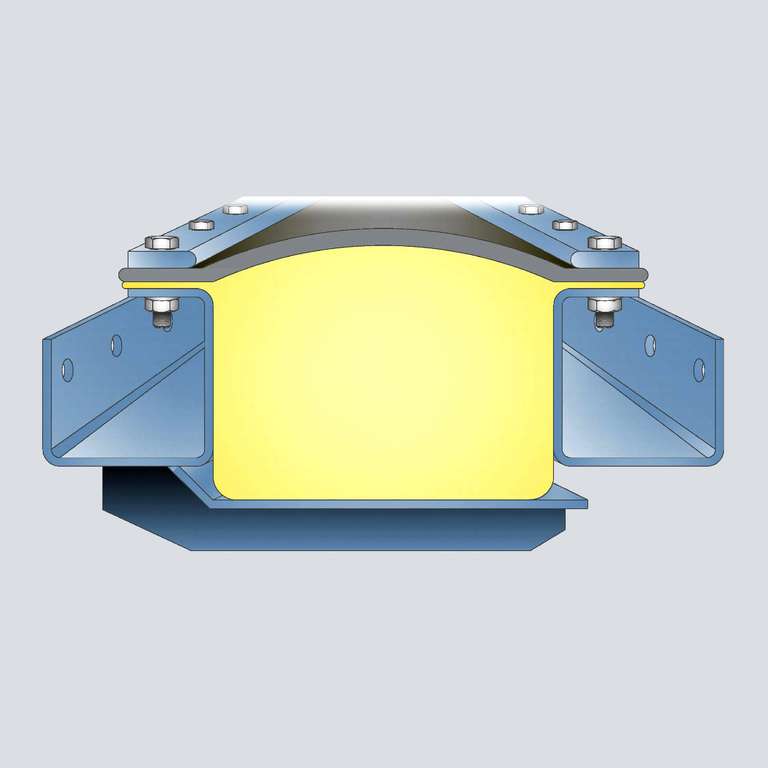

Hot-to-hot For a larger view, please mouseover the image.

Hot-to-hot

Temperature:
max. 600 °C (1,100 °F)

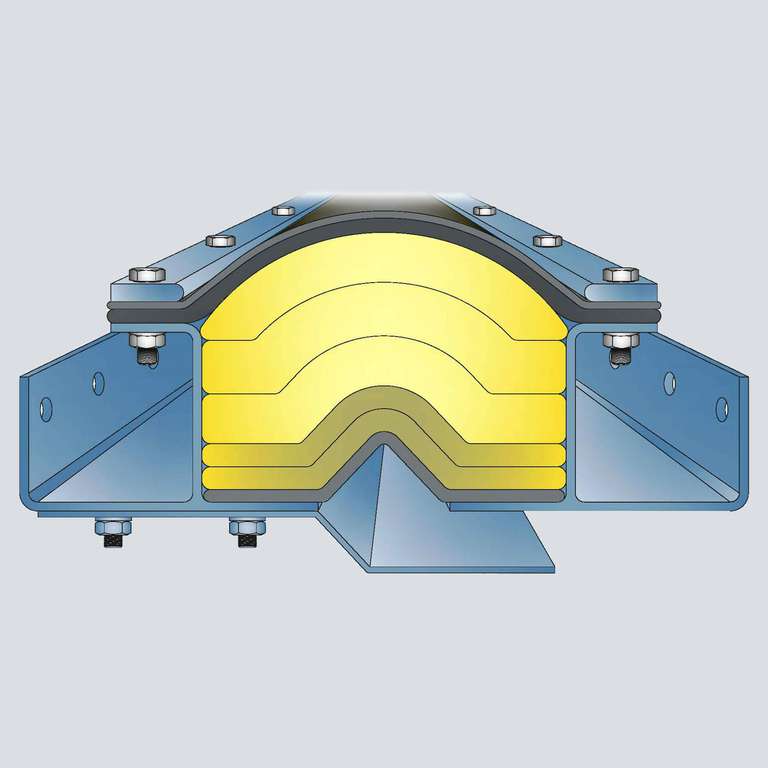

Hot-to-hot high velocity For a larger view, please mouseover the image.

Hot-to-hot high velocity

Temperature:
max. 600 °C (1,100 °F)
