Kombipack 6065

Kombipack 6065

Kombipack 6065

Features

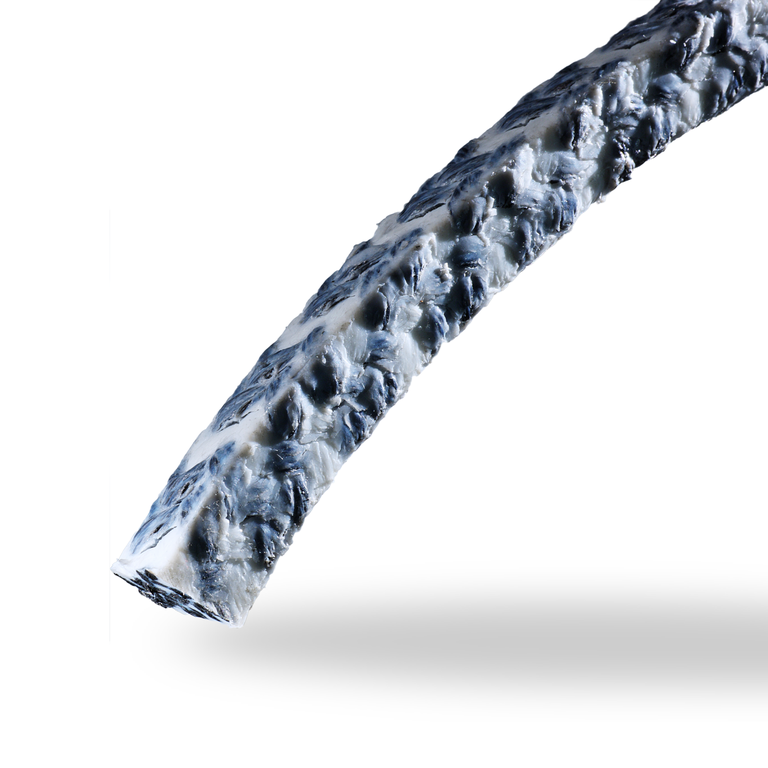

Kombipack 6065 is a packing made from an especially elastic combination of high quality carbon and PTFE yarns, diagonally brad with a special PTFE compound and impregnated with running-in lubricant. The packing is especially able to absorb shaft misalignment and radial stresses, for example in the chemical, paper and food industries.

Advantages

  • Very low friction coefficients
  • Very high elasticity
  • Best sliding properties
  • Low leakage rates
  • Long service life
  • Good heat dissipation
  • Can be used at high temperatures without cold flow

Operating range

Pumps
Pressure: p = 25 bar
Sliding velocity: vg = 20 m/s
Mixers, agitators, kneaders, filters
Pressure: p = 25 bar
Sliding velocity: vg = 2 m/s

Temperature
  • Continuous operation:
    t = -100 °C … +280 °C

Chemical resistance:
pH = 0 ... 14
Resistant alkalis, solvents, alcohols, ester ketones, oils, acids, hot water, brine, and ammonia.

Standards and approvals

  • FDA

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg

Similar products

Araflon 6426

Araflon 6426 is a packing made from high quality, smooth, synthetic and partly pre-impregnated continuous aramid fibers (Kevlar) with multiple applications of PTFE impregnating agent and lubricant additive. The aramid fibers are diagonally braided. This is a high quality and high strength packing. It is used, in particular, in the chemical, petrochemical, waste water and paper industries.

Buraflex HT 2000/HT

Buraflex HT 2000/HT is a packing made from expanded graphite combined with Nomex yarn corners. The Buraflex HT is a special packing for applications with high temperatures and peripheral speeds.

Buraflon 5846

Buraflon 5846 is a diagonally braided, silicone oil-free ramie fiber packing with a light-colored special PTFE impregnating agent based on paraffin wax and oil. This special combination will prevent product contamination. The packing is preferred for use in marine applications, the brewing and drinks industry and the pharmaceutical industry. It is a flexible, maintenance-friendly and easy to adjust packing that is gentle on shaft surfaces.
