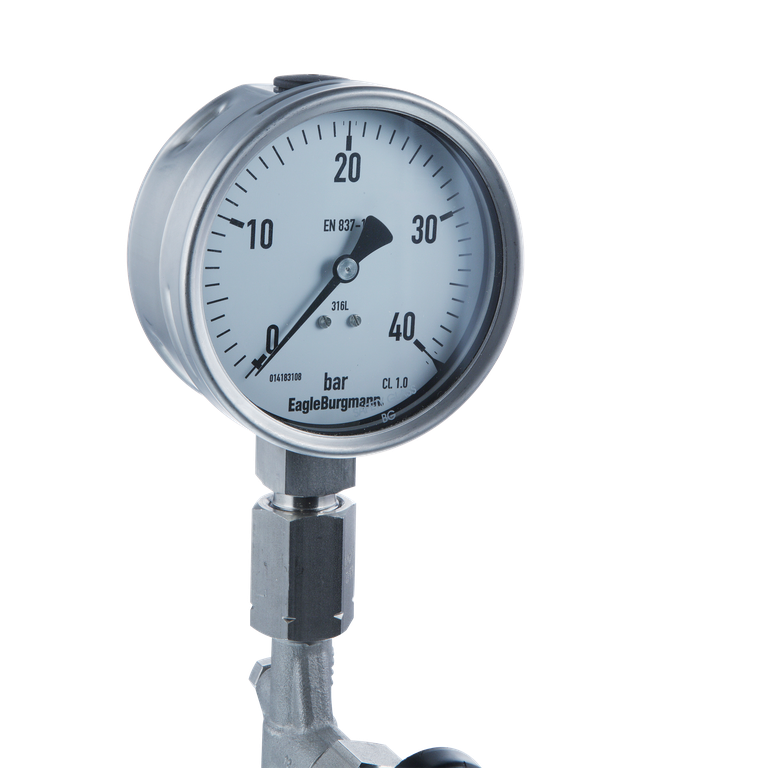

SP23 Pressure gauge

SP23 Pressure gauge

SP23 Pressure gauge

Features

Bourdon pressure gauges of the SP23 range are used for visual monitoring of the operating pressure.

Advantages

  • Analog pressure gauge: indicator range up to 16 bar
  • Available in sizes NG63 and NG100
  • Parts in contact with the medium are made of 1.4571: excellent media resistance for aggressive liquids
  • Wide range of applications throughout the processing industry



Product variants

Designation SP23-092 SP23-094 SP23-095 SP23-097
Pressure range
0 ... 6 bar
0 ... 16 bar
Size
NG63
NG100
Pressure gauge shut-off valve
Without
With
Proximity contact acc. to NAMUR
MIN pressure
Explosion protection
Category II 2 G D II 2 G D II 2 G D -
Type of protection c c ia -
Temperature class T4/T135 °C T4/T135 °C T1-T6/T...°C -
Material
Wetted parts 1.4301 1.4301 316L 1.4301

Please inquire about other measurement ranges, pressure gauges with contacts resp. with already fitted shut-off valves.
