LS050 (Plan 65)

Request product

LS050 (Plan 65)

LS050 (Plan 65)
Request product

LS050 (Plan 65)

Features

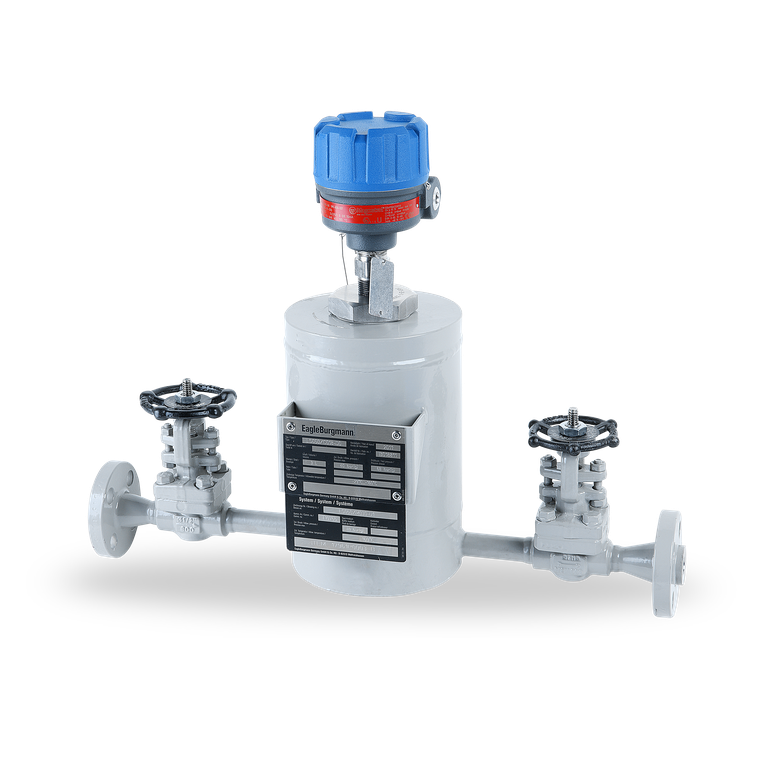

The EagleBurgmann leakage control systems of the LS050 range in accordance with API Plan 65 consist of a leakage collection tank with integrated orifice and overflow pipe along with two shut-off valves. The level can be monitored with the a level switch.

Circulation in accordance with API 682 / ISO 21049: Plan 65

Advantages

  • Innovative design: orifice and overflow pipe integrated in the vessel
  • No need for extra pipe work for the overflow pipe
  • Low space requirements because of compact design
  • Integrated level monitoring for reliable operation

Standards and approvals

  • PED 2014/68/EU (Design and production in accordance with EU Pressure Equipment Directive)
  • ASME VIII, Div. 1 (Design, calculation and production)

Functional description

The LS050 leakage control system in accordance with API Plan 65 is used to discharge leakage from single seals. The outboard leakage is collected in an external tank; the leakage volume is monitored (level in the tank).


Product variants

Designation LS050/M004-D0 LS050/M006-D0 LSA6000A4 LSB6000A4
Design code PED 2014/68/EU PED 2014/68/EU PED 2014/68/EU / ASME VIII, Div. 1 PED 2014/68/EU / ASME VIII, Div. 1
Volume, vessel (liters) 3 3 4 4
Allowable pressure1) 50 bar
(725 PSI)		 50 bar
(725 PSI)		 44 bar
(638 PSI)		 44 bar
(638 PSI)
Allowable temperature1) 0 °C ... +80 °C
(+32 °F ... +176 °F)		 0 °C ... +80 °C
(+32 °F ... +176 °F)		 -20 °C … +120 °C
(-4 °F … +248 °F)		 -20 °C … +120 °C
(-4 °F … +248 °F)
Metal parts 1.4571 1.4571 316/316L 316/316L
Process connections 1/2" NPT Flange 1/2" Flange 3/4", 600 lb Flange 3/4", 600 lb
Level monitoring LSH LSH Differential Pressure Transmitter (PDIT) Differential Pressure Transmitter (PDIT)
API 682 3rd edition Plan 65 Plan 65
API 682 4th edition Plan 65A Plan 65A

Other versions on request.
1) Design data, permissible working values depend on the actual conditions of service.


LSA6000A4
Product variant according to API 682 4th edition, Plan 65A

A From mechanical seal
B To leakage collection system
LSB6000A4
Product variant according to API 682 4th edtion, Plan 65B

A From mechanical seal
B To collection system
