Installation, details, options

For a larger view, please mouseover the image.

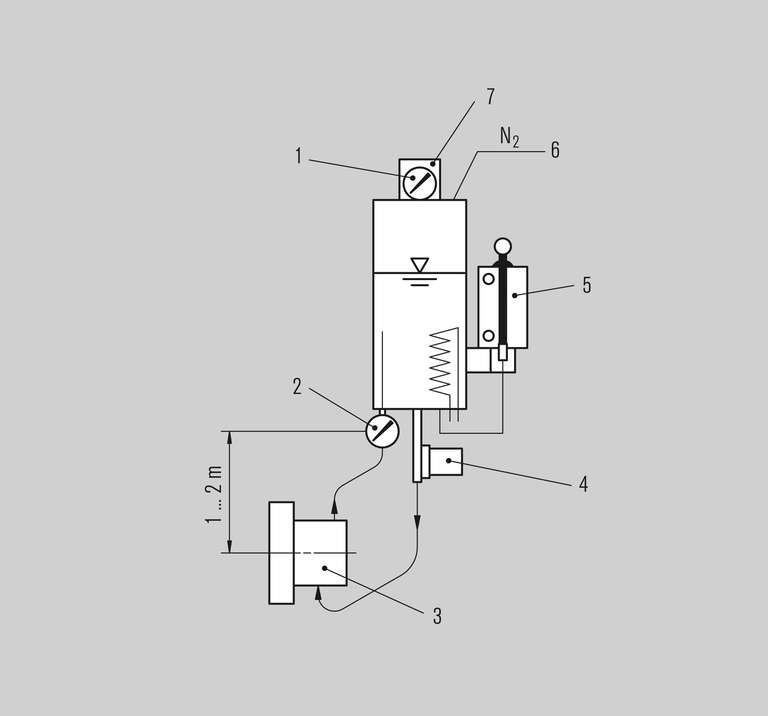

Operating and installation diagram for a TS1000 system.

The TS vessel must always be installed higher than the mechanical seal. The buffer/barrier fluid flows via the rising pipe into the vessel and is cooled. Particularly with natural circulation, the fluid level must always be higher than the rising pipe to maintain the circulation and to provide the specified cooling capacity. Connection pipes to the seal should be designed with as little resistance as possible.

1 Pressure gauge
2 Thermometer
3 Mechanical seal
6 From PCV, we recommend using a reverse controlled pressure control valve (PCV)
5 Level switch
