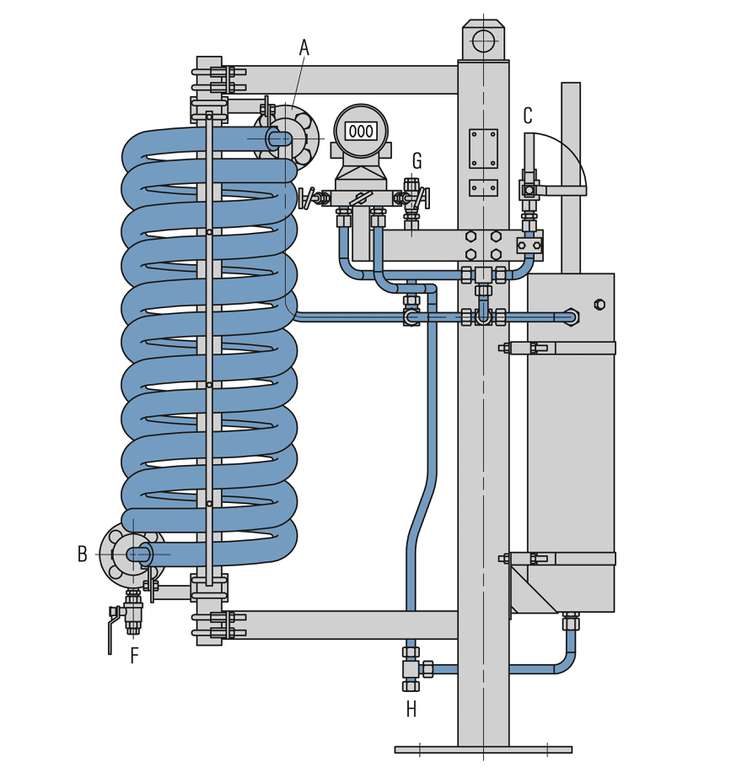

A From mechanical seal
B To mechanical seal
C Fill
G Vent
H Pressure reference

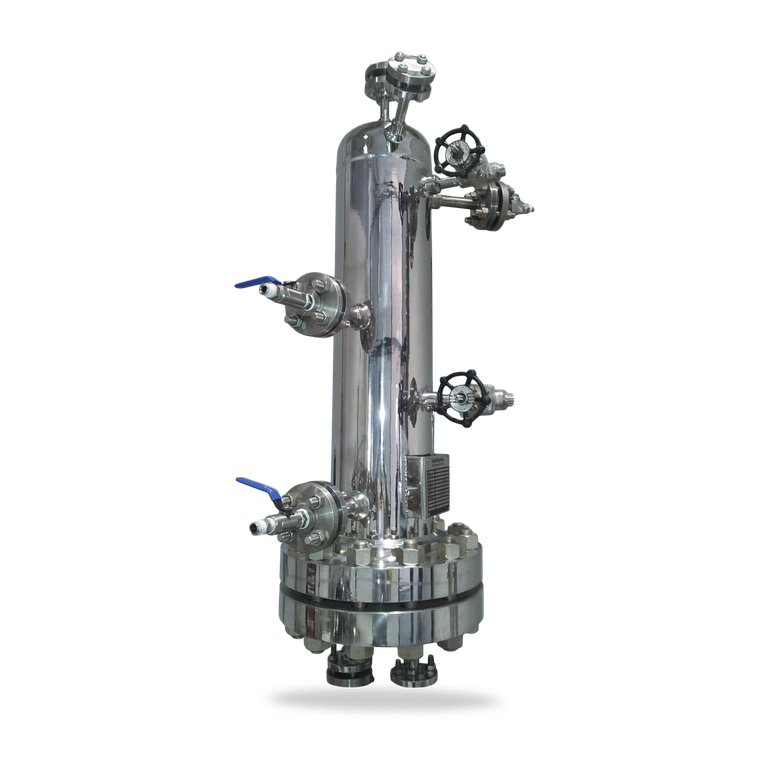

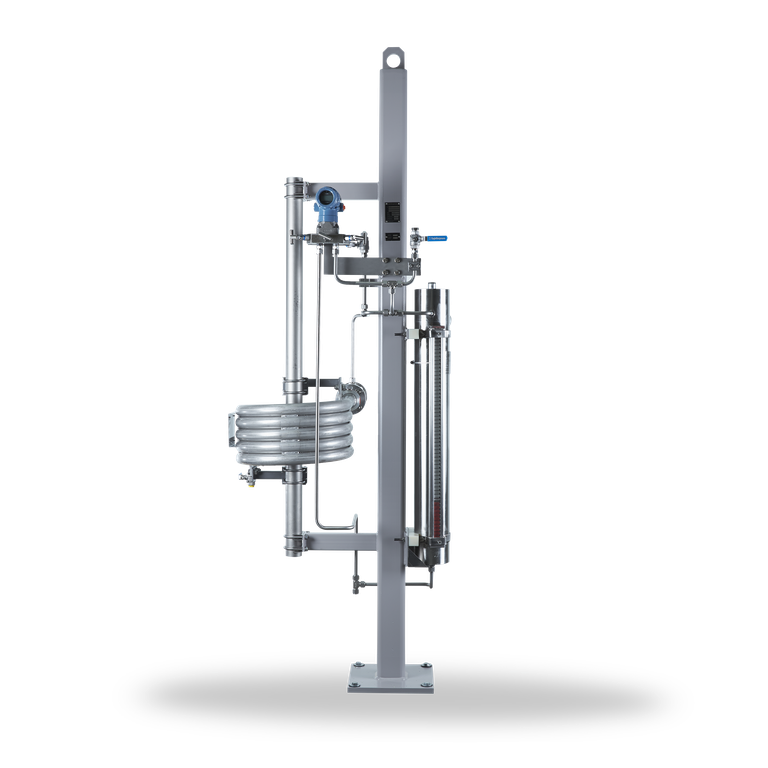

SPC6 Barrier fluid system
with piston accumulator

Features

Pressurized barrier system (closed circuit) for use in seal systems with high pressures and/or for hazardous/environmentally harmful processes.
The SPC6000A4 (API Plan 53C) range is available with a pressure booster, cooler (finned tube, water or air cooler with fan) and a wide range of instruments.
A refilling unit must be provided.

Advantages

  • Pressurization occurs by means of a pressure booster
  • Automatic setting of the barrier pressure via reference pressure:
    simple and reliable mode of operation
  • Safe operation even in case of pressure changes
  • Barrier pressure is created without any need for connection to a nitrogen supply
  • Available with finned tube, water or air coolers with fan
  • Modular system: combination with a wide range of system components/instruments possible

Operating range

Pressure ratio depending on stuffing box pressure range:
• 4 bar (58 PSI) … <10 bar (145 PSI)
= piston ratio 1:1.5
• 10 bar (145 PSI) … <22 bar (319 PSI)
= piston ratio 1:1.2
• 22 bar (319 PSI) … 40 bar (580 PSI)
= piston ratio 1:1.1
For stuffing box pressures less than 4 bar (58 PSI) or above 40 bar (580 PSI) consult EagleBurgmann.

Standards and approvals

  • API 682 / ISO 21049
  • API 682 4th ed. Cat. 2/3 - 3CW-FB
  • API 682 4th ed. Cat. 2/3 - 3CW-BB
  • API 682 4th ed. Cat. 2/3 - 3CW-FF
  • API 682 4th ed. Cat. 1 - 3CW-FB

Functional description

The SPC6000A4 is designed to perform the following functions of a barrier system:

- To pressurize the buffer chamber
- As leakage compensation
- To cool the seal

Pressurization (> process pressure) prevents the process medium from getting into the barrier circuit or the atmosphere. Circulation in the barrier circuit occurs via the thermosiphon principle or by forced circulation, e.g., with a pumping screw.

Notes

Design and production in accordance with EU Pressure Equipment Directive PED 2014/68/EU available.
Design, calculation and production acc. to ASME VIII, Div. 1 available.

3rd party inspection, ASME U-stamp on request.

Recommended piping plans




Product variants

Designation SPC6000A4 SPC6001A4 SPC6002A4 SPC6003A4
Design code ASME VIII, Div. 1 PED 2014/68/EU ASME VIII, Div. 1 PED 2014/68/EU
Type of heat exchanger Air
cooler a)
Water
cooler b)
Air
cooler a)
Water
cooler b)
Air cooler a) Water
cooler b)
Air
cooler a)
Water
cooler b)
For shaft diameters
≤60 mm (acc. to API 682)
For shaft diameters
>60 mm (acc. to API 682)
Piston accumulator (liters) 2.8 2.8 5.1 5.1
Allowable pressure1) 44 bar (638 PSI) 44 bar (638 PSI) 44 bar (638 PSI) 44 bar (638 PSI)
Allowable temperature –
piston accumulator1)
-20 °C … +90 °C
(-4 °F … +194 °F)
-20 °C … +90 °C
(-4 °F … +194 °F)
-20 °C … +90 °C
(-4 °F … +194 °F)
-20 °C … +90 °C
(-4 °F … +194 °F)
Allowable temperature –
system1)
-20 °C … +90 °C
(-4 °F … +194 °F)
-20 °C … +90 °C
(-4 °F … +194 °F)
-20 °C … +90 °C
(-4 °F … +194 °F)
-20 °C … +90 °C
(-4 °F … +194 °F)
Cooling capacity –
with water cooled heat exchanger (kW)2)
10 10 10 10
Cooling capacity –
with air cooled heat exchanger (kW)2)
2.0 2.0 2.0 2.0
Metal parts 316/316L 316/316L 316/316L 316/316L

Other versions and connections (flanged, threaded, welded) on request.

1) Design data, permissible working values depend on the actual conditions of service.
2) The cooling performance depends on the available fluids, their temperatures and flow rates. Please contact EagleBurgmann for professionally selecting the correct heat exchanger.

a) WEL6002A4
b) WEF6100A4

Similar products
