TS1000

TS1000 For a larger view, please mouseover the image.
For a larger view, please mouseover the image.
Item Description
1 Buffer/barrier fluid IN (G1/2")
2 Buffer/barrier fluid OUT (G1/2")
3 Cooling water IN (pipe 12 x 1.5 mm)
4 Cooling water OUT (pipe 12 x 1.5 mm)
5 Filling connection with cap (G1/2")
6 Pressure gas connection (1/4" NPT)
7 Connection for level switch (G2")
8 Connection for refill unit (G1/8")
9 Connection for pressure gauge (1/4" NPT)
10 Bracket for refill unit

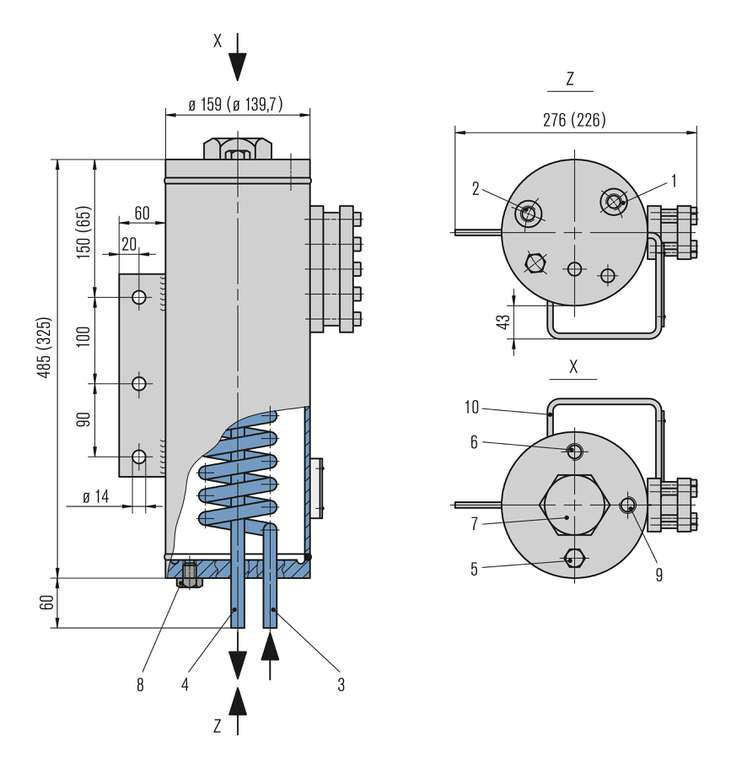

Dimensions for TS1016/A007
Values in brackets: TS1016/A003.

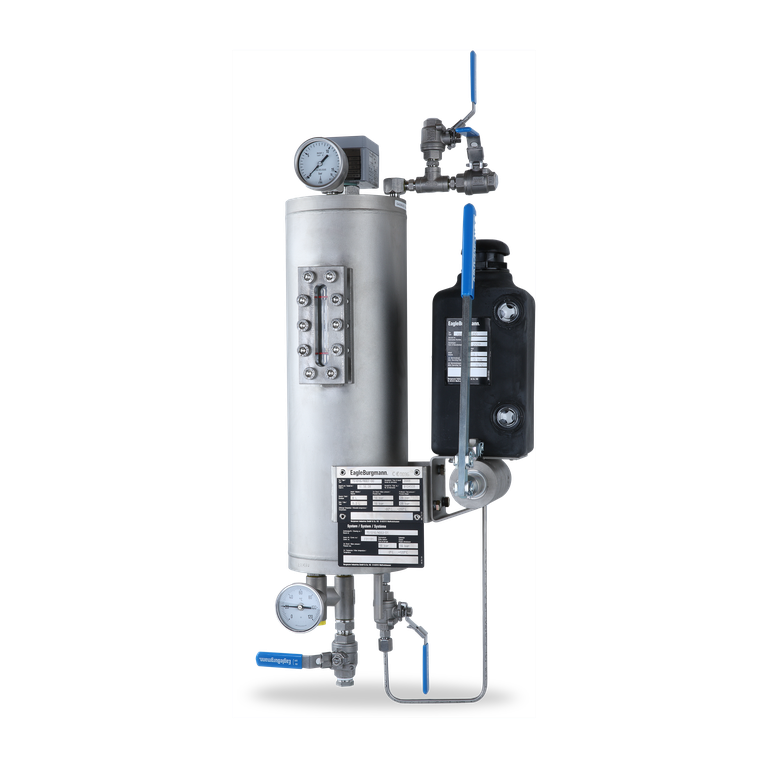

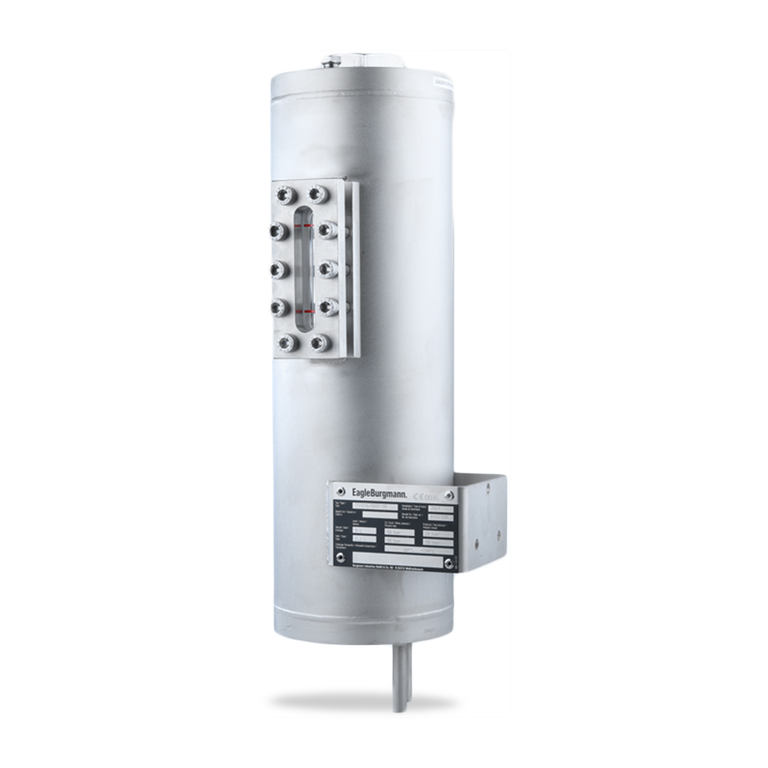

With the EagleBurgmann TS1016 thermosiphon system it is possible to supply buffer/barrier fluid to double and tandem mechanical seals for a broad range of applications. The TS1016 thermosiphon vessel is available in 2 standard sizes with flat ends, sight-glasses for level monitoring and with or without cooling coil. TS vessels are equipped as standard with all the necessary system connections and brackets. The modular system allows the TS1016 vessels to be combined with a wide range of system components such as, e.g. level switch, circulation pump, hand refill pump, thermometer, base frame, etc.

Circulation based on API 682 / ISO 21 049: Plan 52, Plan 53A
  • Available in 2 standard sizes
  • Modular system: combination with a wide range of system components possible
  • Vessel made of 1.4571 stainless steel / borosilicate sight-glasses: suitable for universal applications
  • All system connections on the face sides
  • Available with or without cooling coil
  • Low space requirements because of compact design
  • PED 2014/68/EU (Design and production in accordance with EU Pressure Equipment Directive)
  • SELO, TR CU on request
  • Chemical industry
  • Petrochemical industry
  • Pulp and paper industry
  • Food and beverage industry
  • Water and waste water technology
The TS system performs all the basic functions of a buffer/barrier system for the operation of double seals:
  • to pressurize the buffer chamber
  • leakage compensation
  • buffer/barrier fluid is circulated by thermosiphon effect or forced circulation system
  • to cool the seal
  • to selectively absorb product leakage and prevent dry running (tandem arrangement)
Use compressed air or nitrogen for pressurization.
