Features

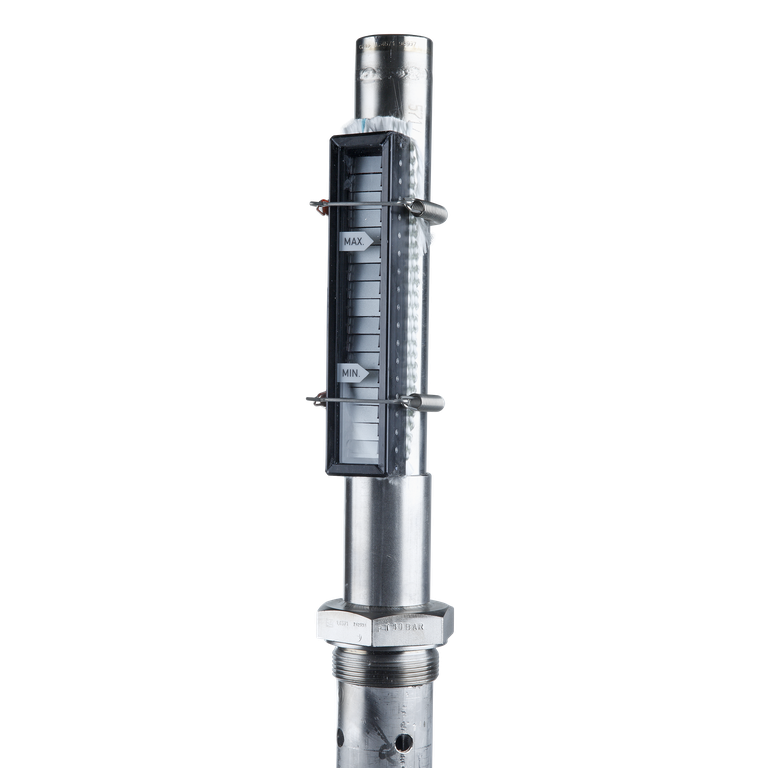

The tank-top mounted level indicators of the SPL range are used for continuous measuring, indication and monitoring of fluid levels. The level indicator consists of a vertical pipe with an integrated floating ball and a magnet system. The indicator strip can be positioned through 360° and is fixed to the outside of the vertical pipe.

Advantages

  • Simple and reliable technology
  • Magnet system: level indicator functions even if there is a power failure, as it requires no auxiliary power
  • For temperatures of up to 200°C
  • Installed in the vessel from above

Functional description

The level indicator functions by means of a floating ball and a magnet system. The movable two-color metal plates on the indicator strip on the outside of the vertical pipe are actuated/turned by the magnet system.

Notes

Please quote the density of the buffer fluid when placing your order.



Product variants

Technical data SPL2000
Designation SPL2000
Allowable pressure 63 bar
(914 PSI)
Allowable temperature 200 °C (392 °F)
Min. density of medium 0.7 g/cm3
Materials / weight
Wetted parts 1.4571
Floater Titanium
Net weight (approx.) 5 kg (11 lb)
Version with SPK2000 contact unit for limit measurements available.
